Labadi Engineering

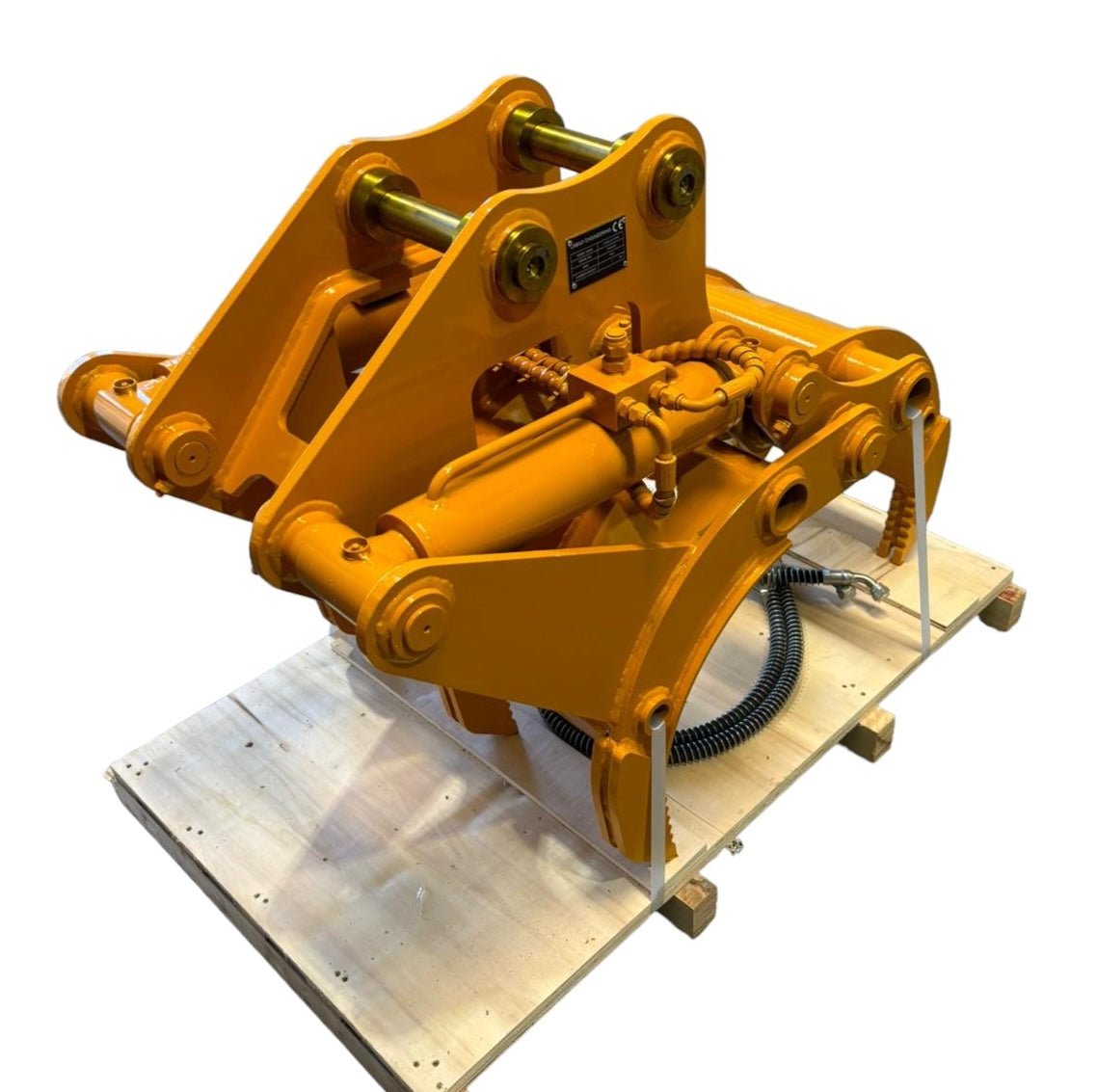

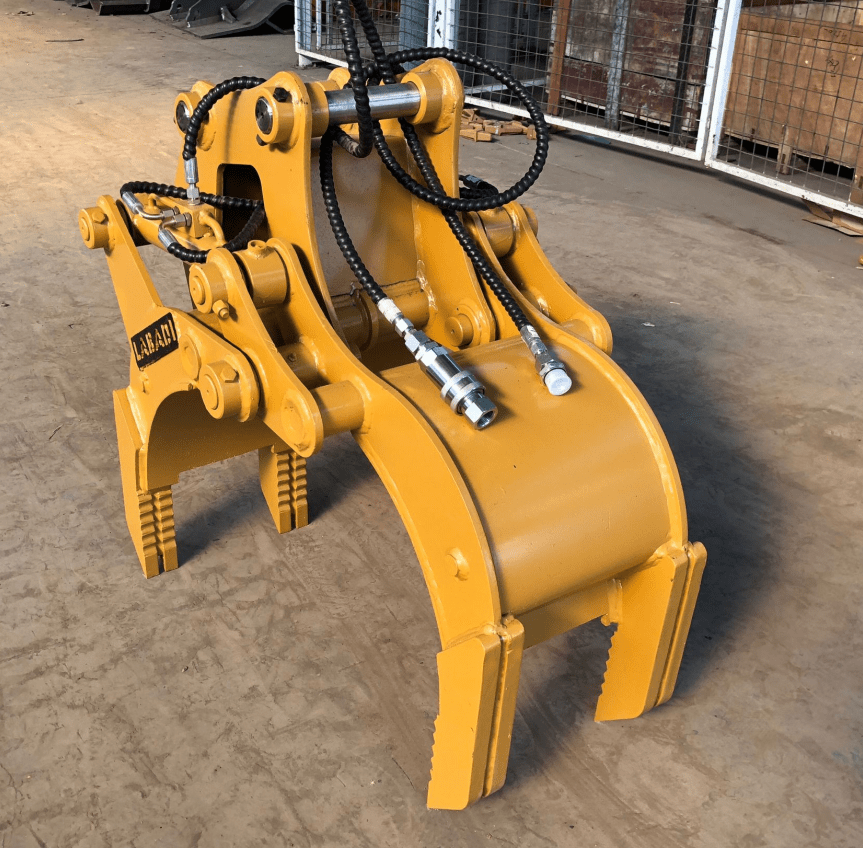

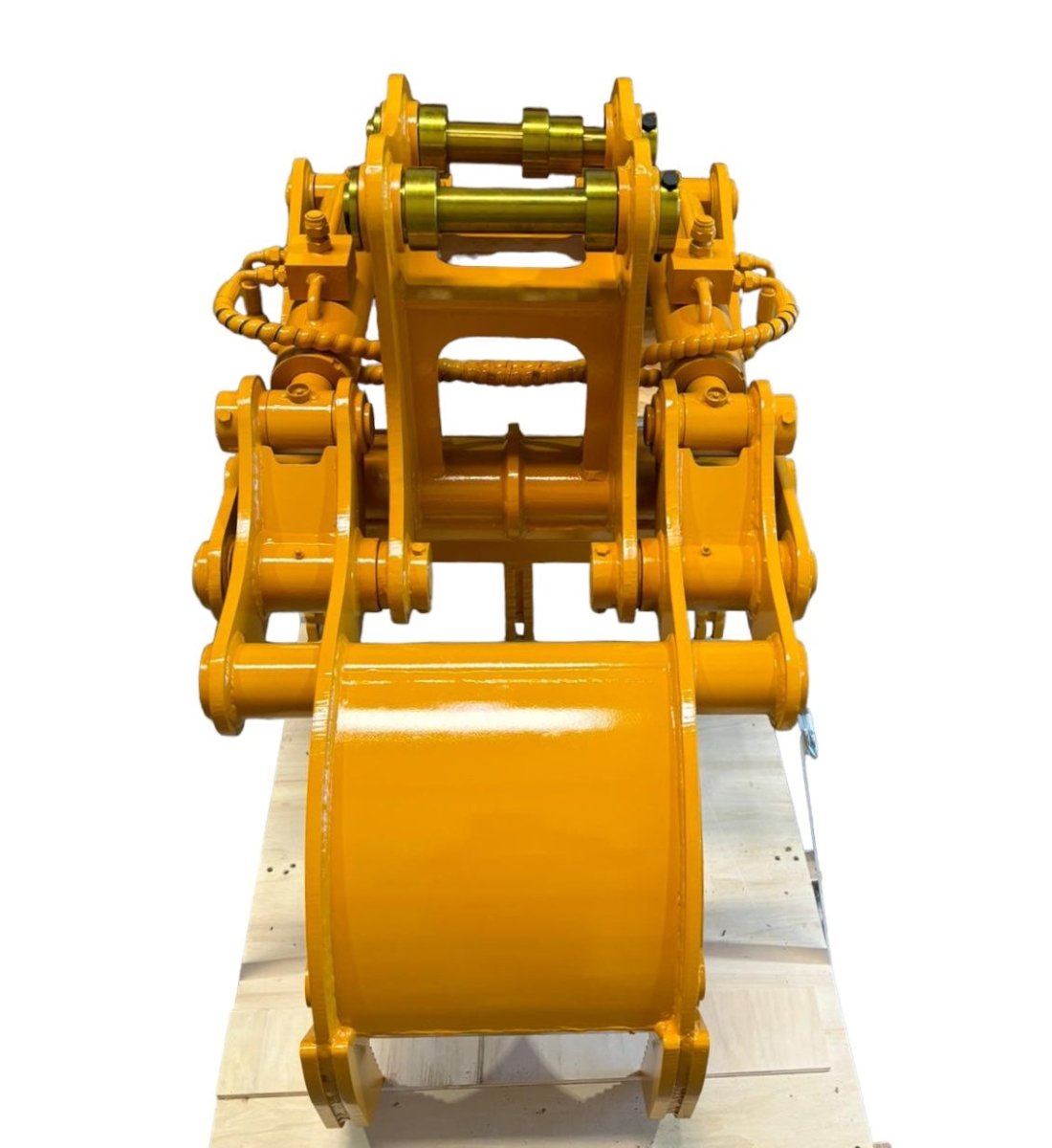

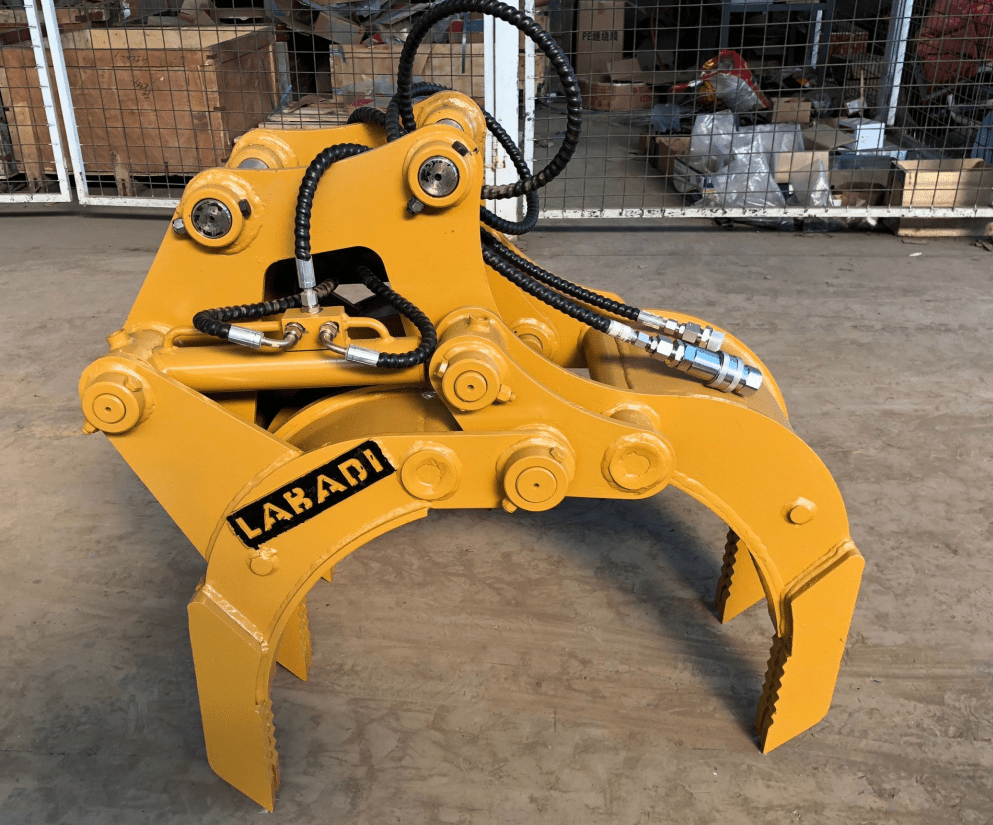

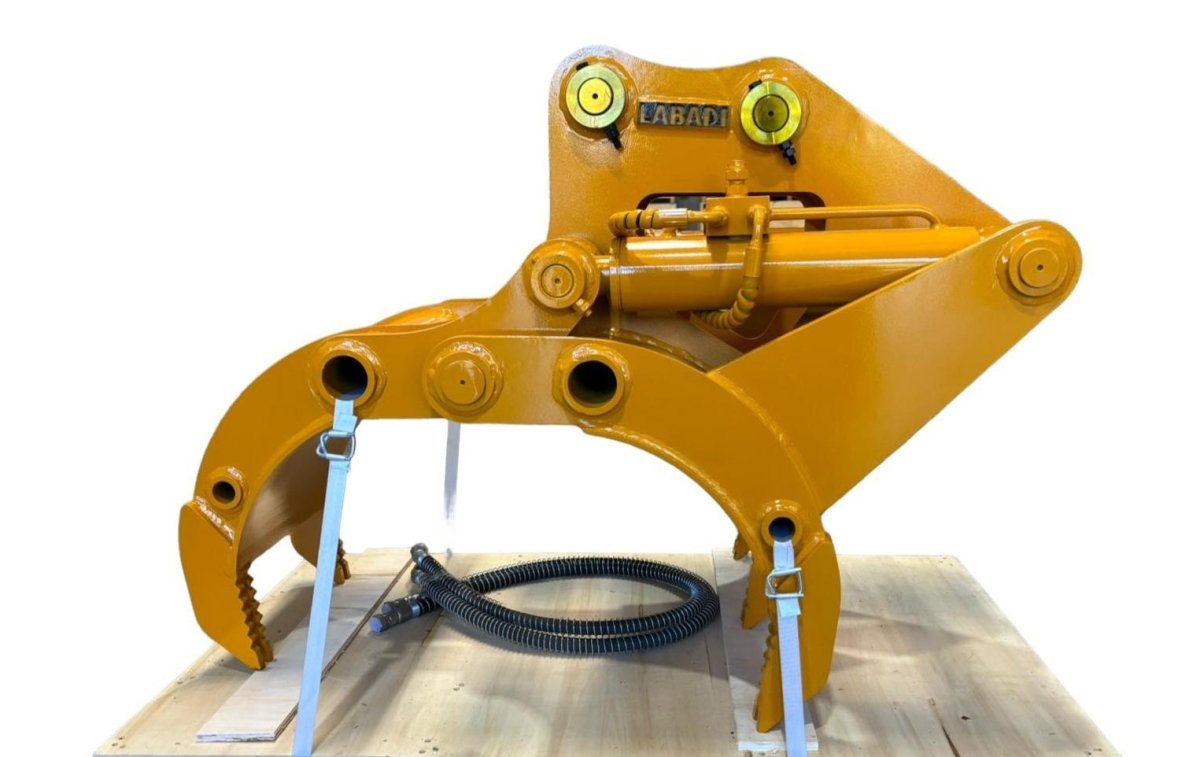

Labadi 5 Tonne Hydraulic Grab (Grapple)

Regular price $3,750.00 AUD
Regular price Sale price $3,750.00 AUD
Shipping calculated at checkout.

The Hydraulic Grapple has a large jaw opening that allows it to pick up large materials, and the hydraulic design of the grapple give it better grip, so it can grab large and uneven loads, increasing productivity and efficiency in loading cycles.

The Standard Hydraulic Grapple has the ability to handle large loads, making it ideal for site cleanup and material handling, constructed with high quality materials such as Q345B, NM360/400 and HARDOX 450/500 to ensure durability.

SPECIFICATIONS

Excavator Size: 4 tonne, 5 tonne, 6 tonne & 7 tonne

Max Opening: 730mm

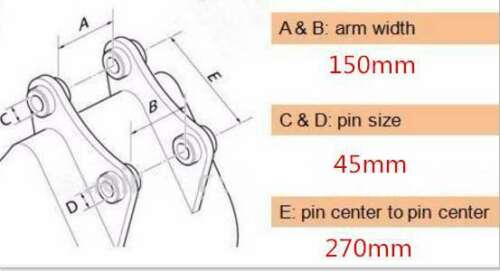

Pin Size: 45mm

Arm Width: 150mm

Pin Centre to Pin Centre: 270mm

Weight: 276kg

Type: Box Type

Opening Depth: 400mm

Claw Length: 560mm

Working Pressure: 210bar

Cylinder Diametre: 40mm
