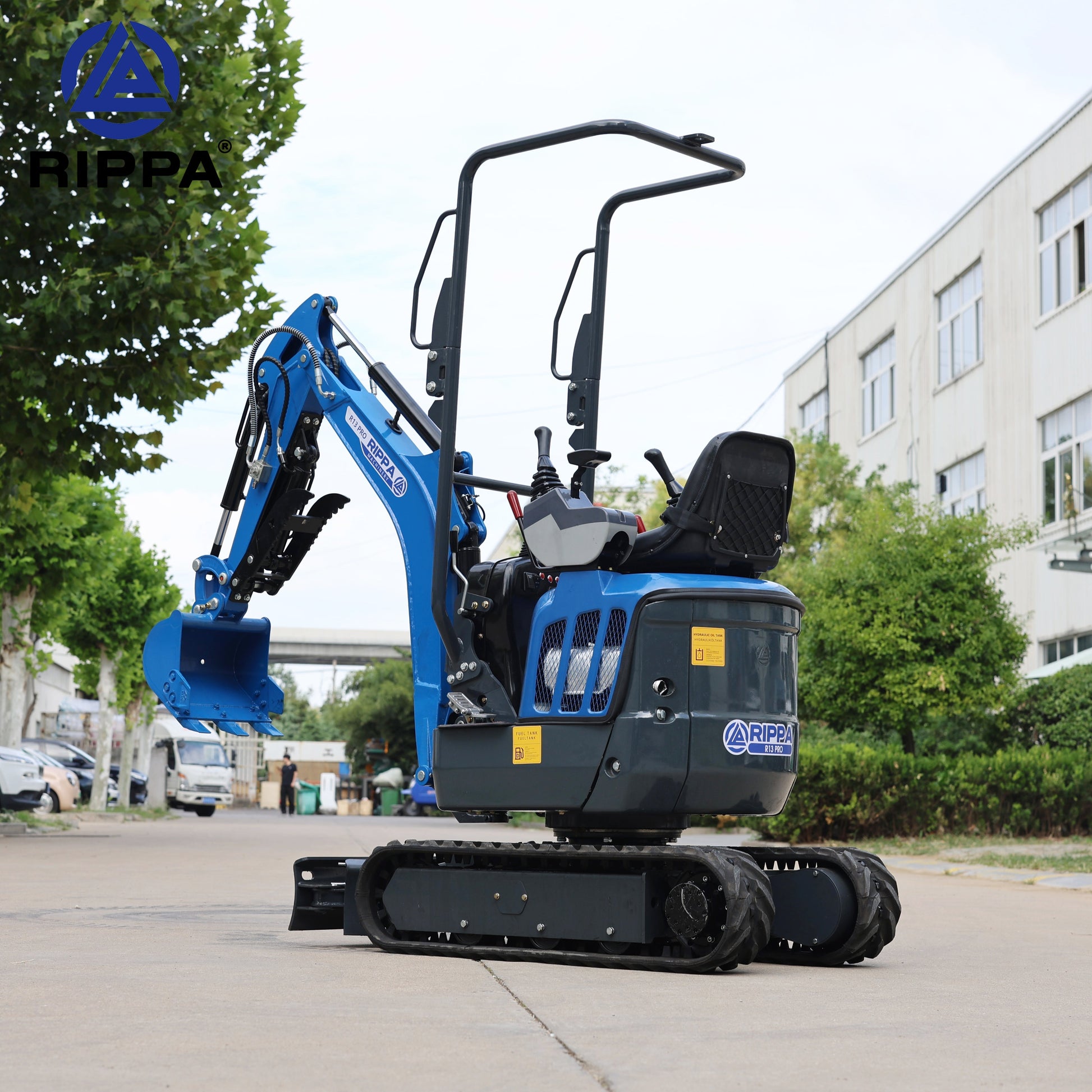

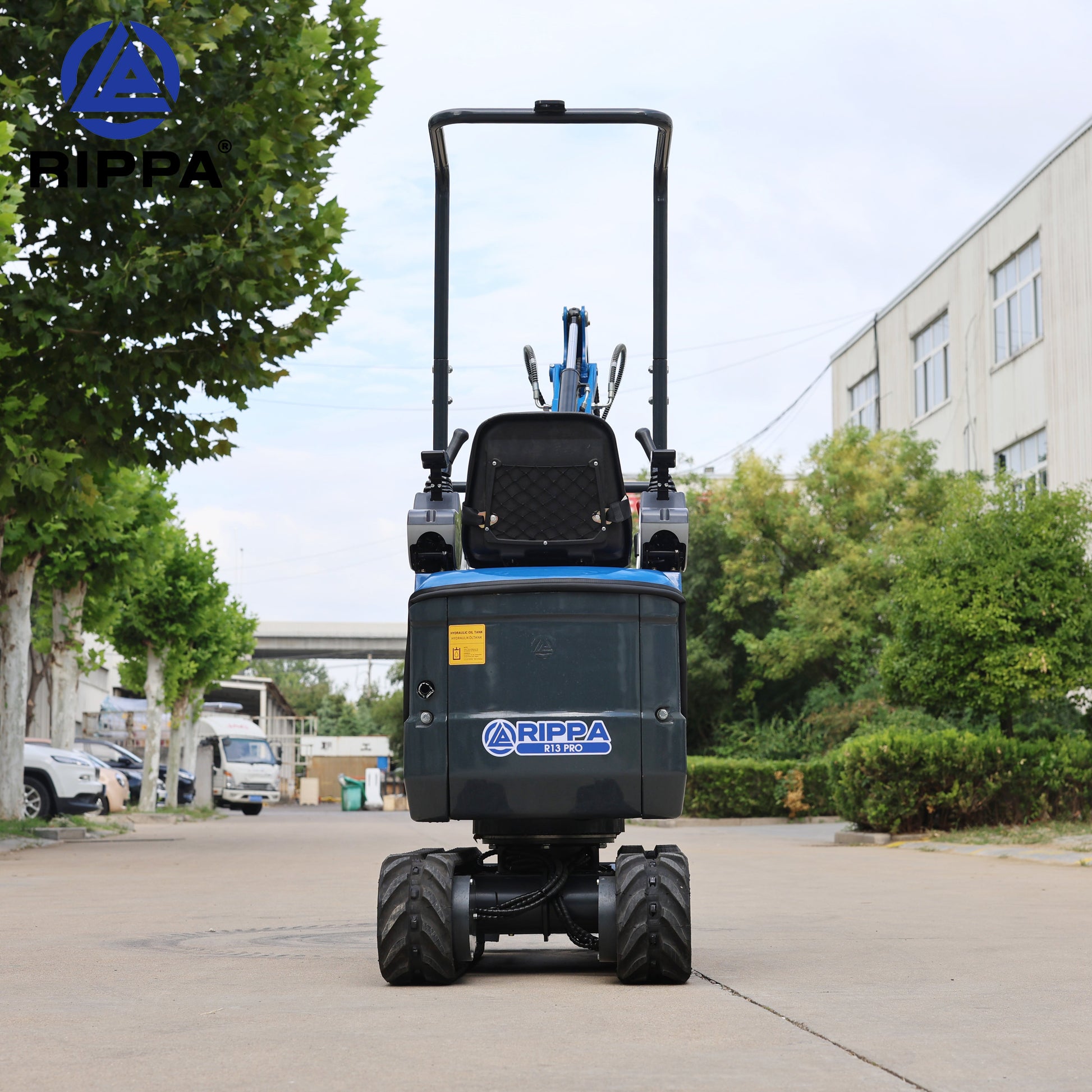

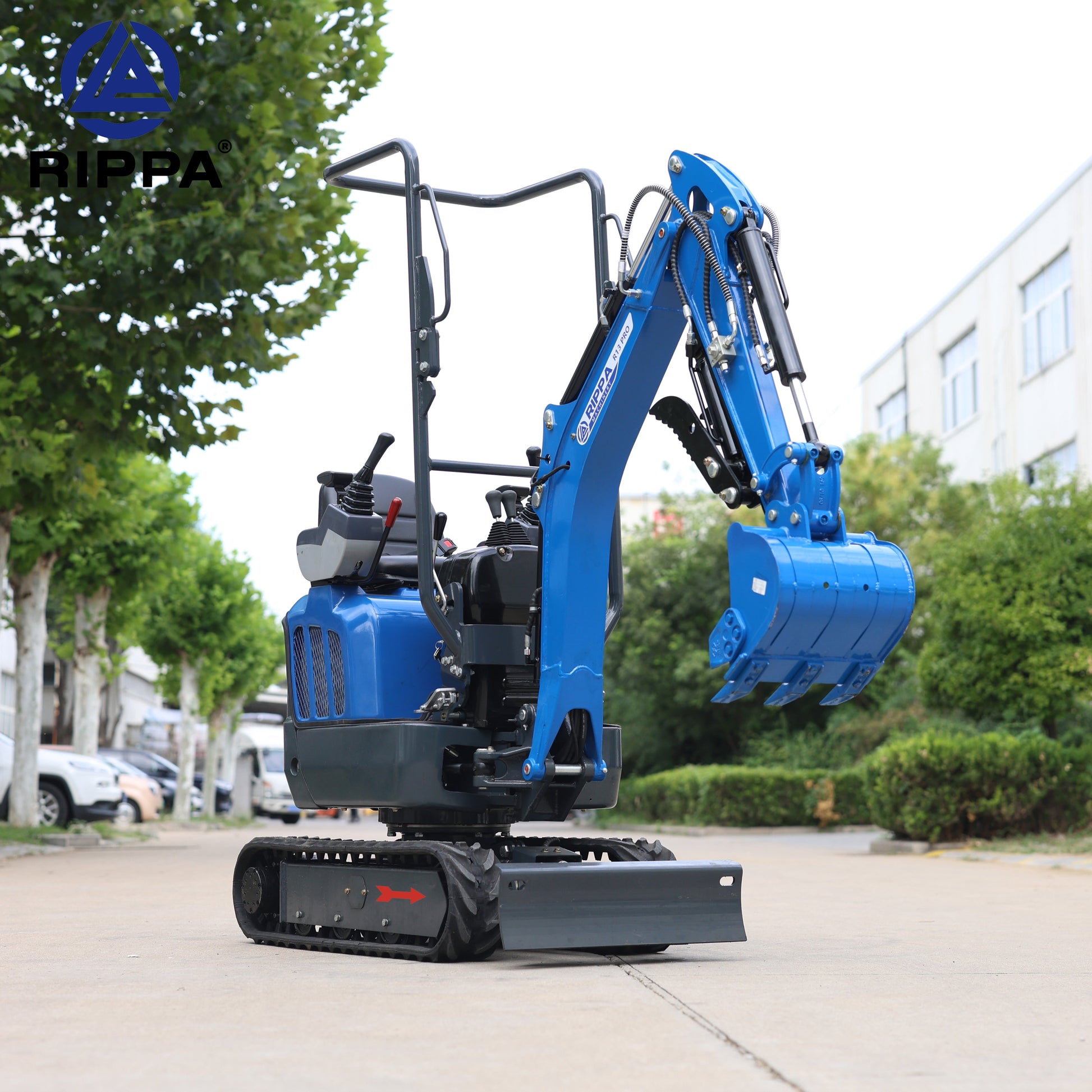

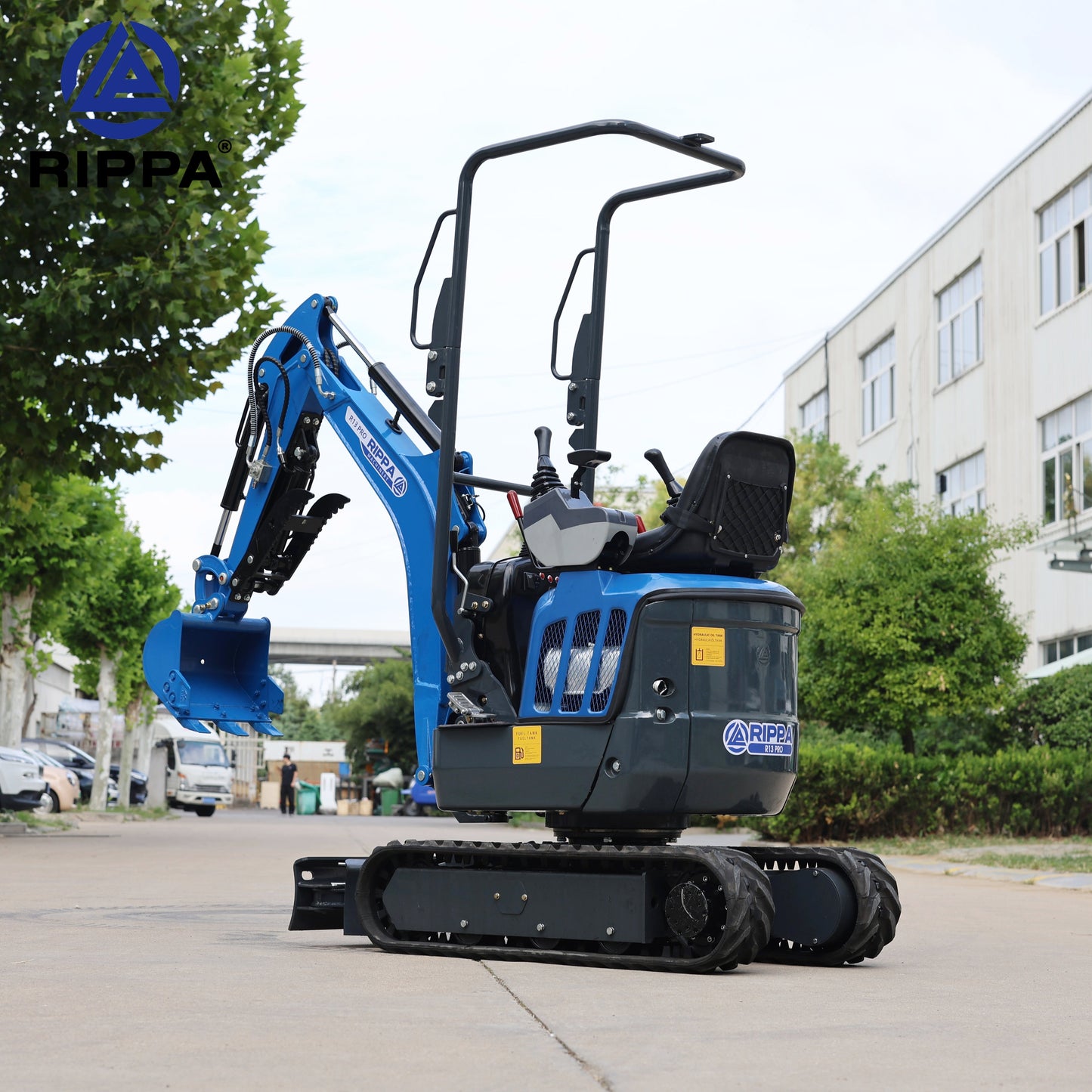

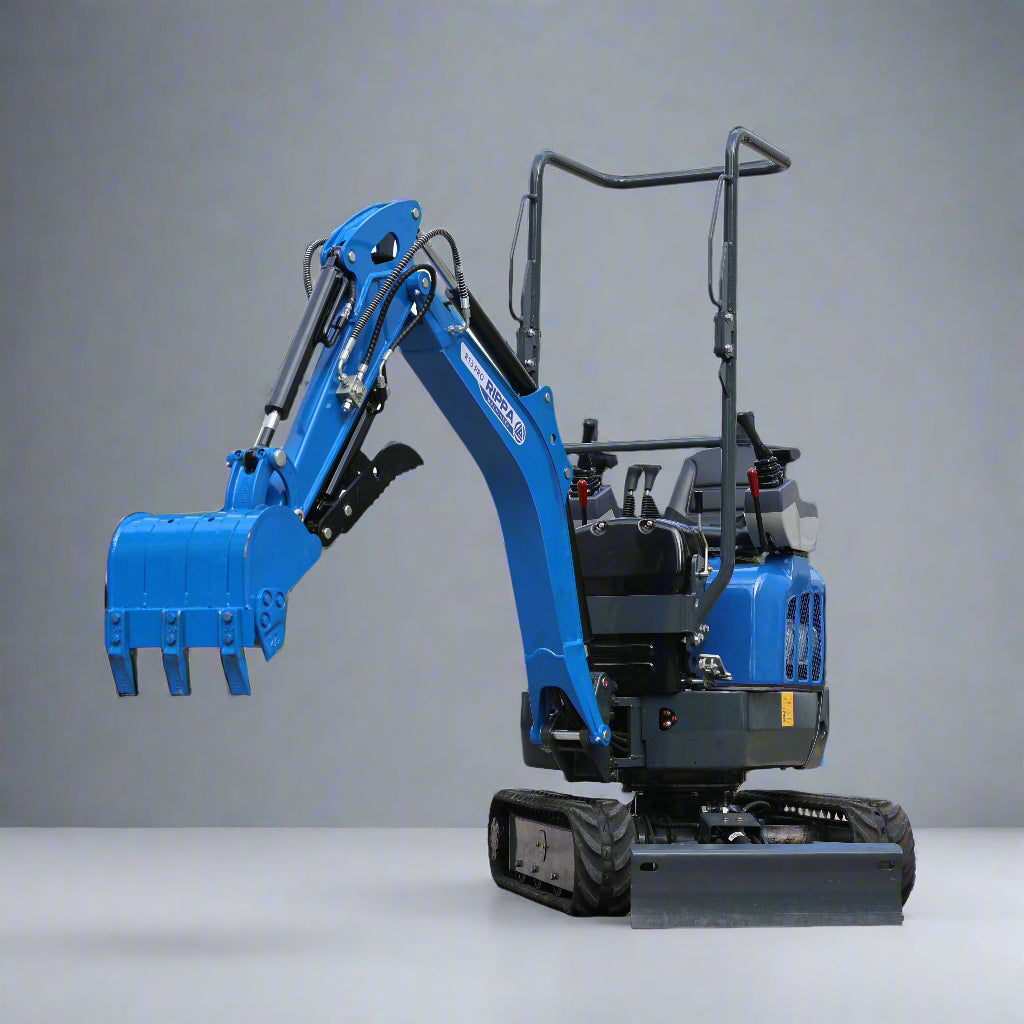

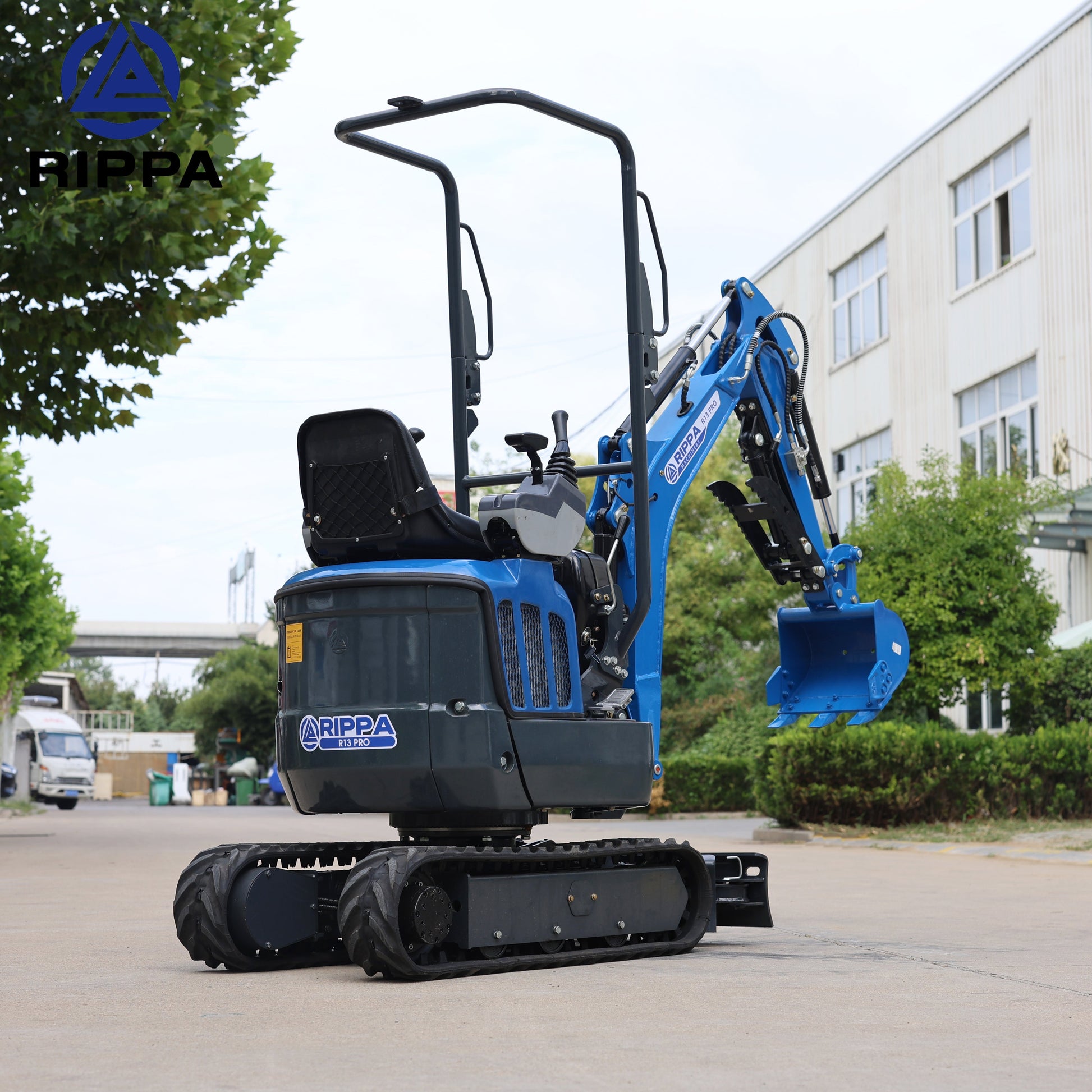

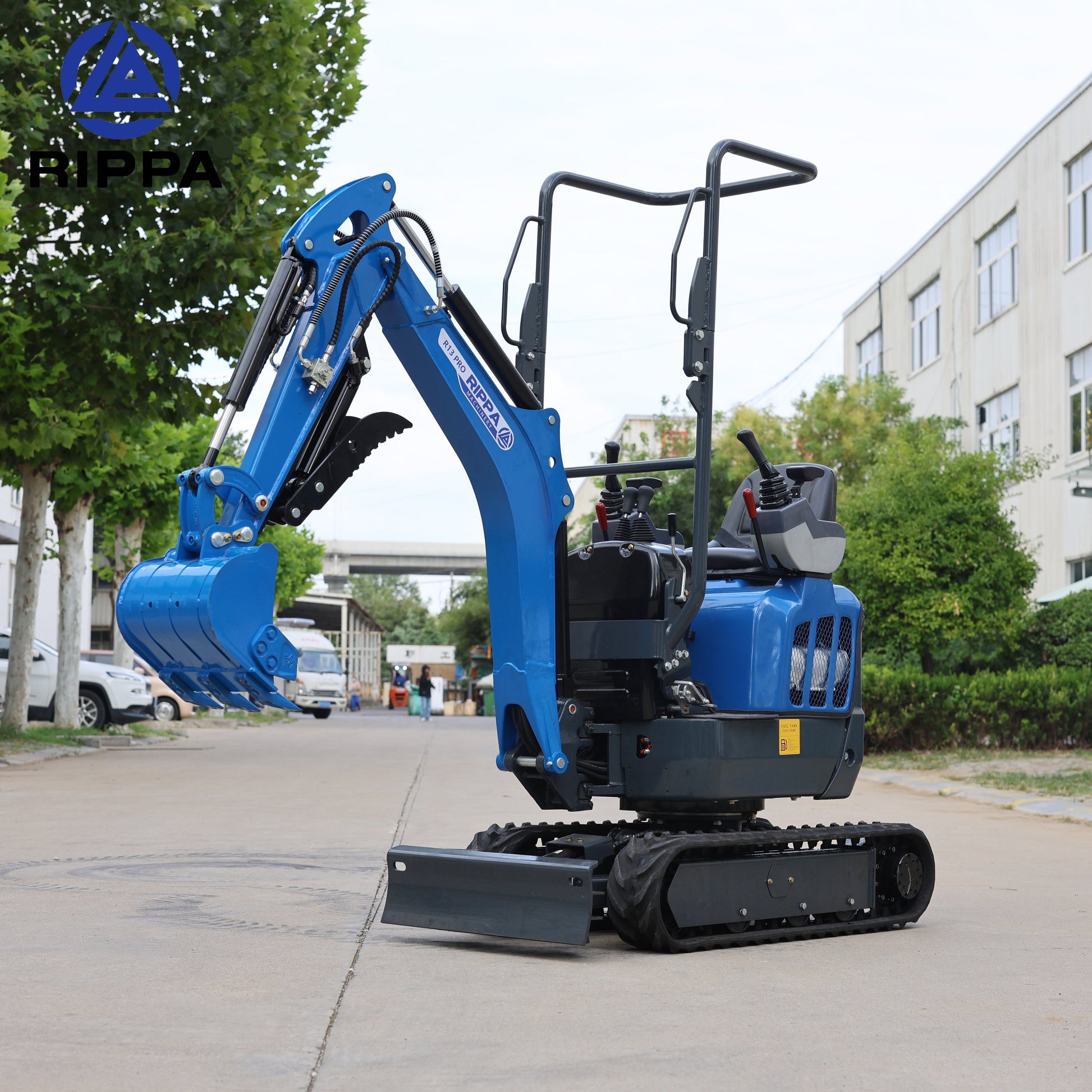

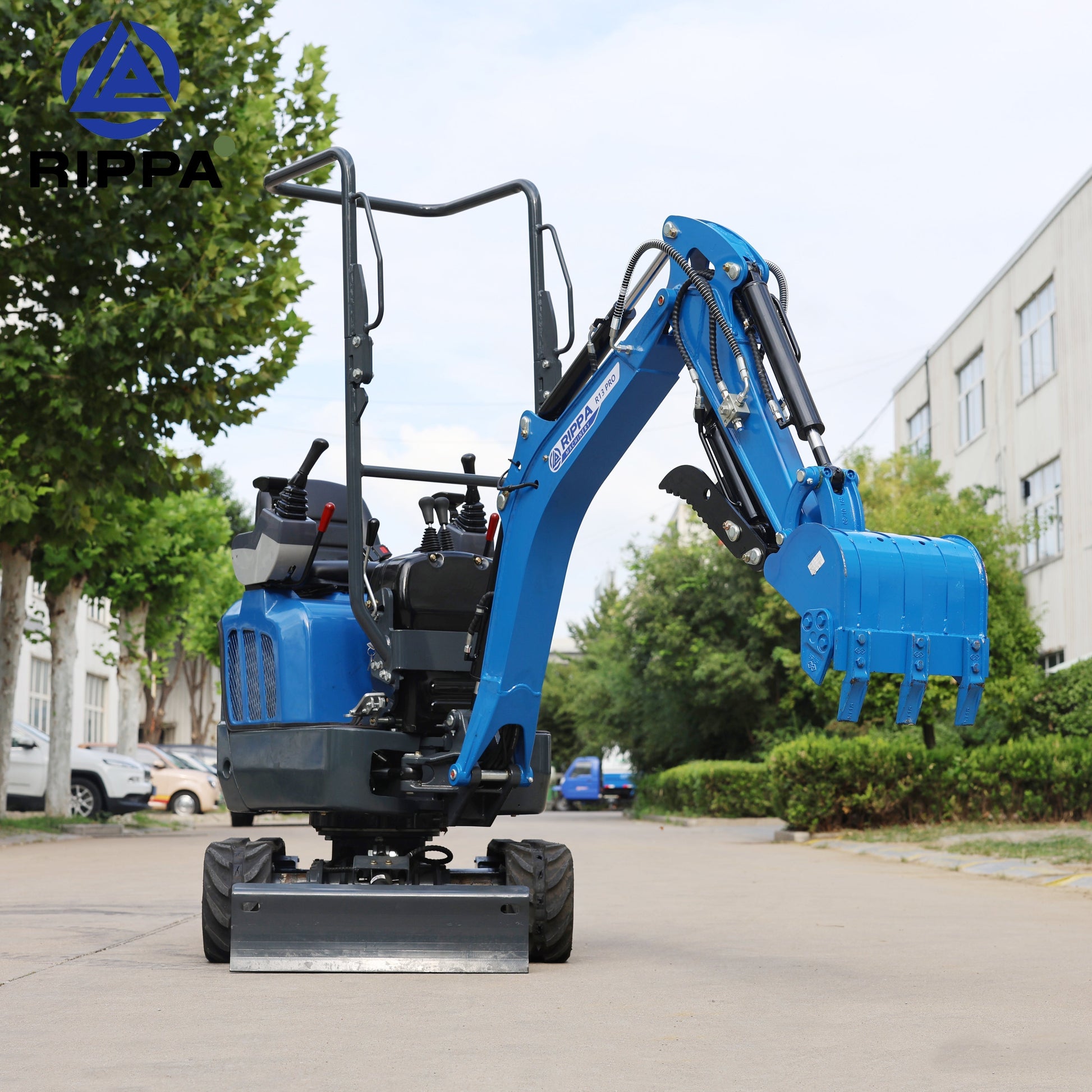

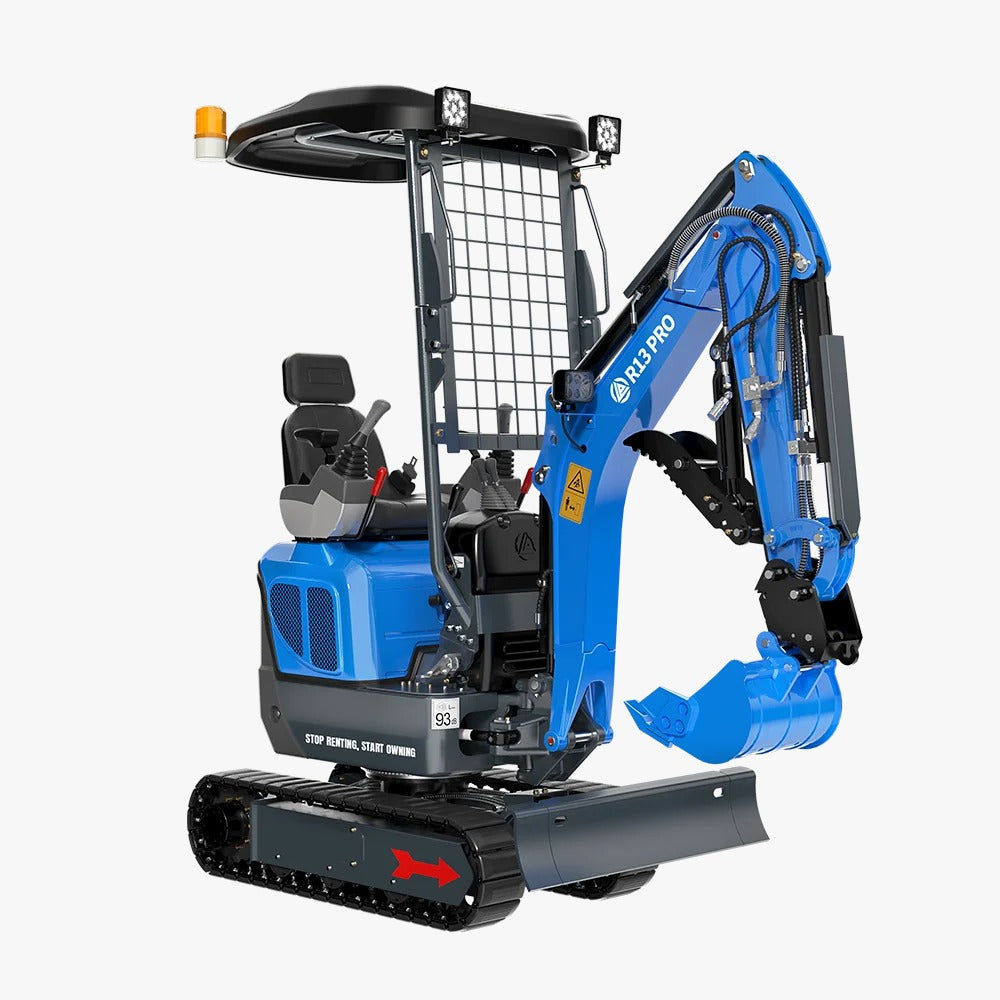

R13 Pro Excavator with Kubota Engine and Hydraulic Quick Hitch

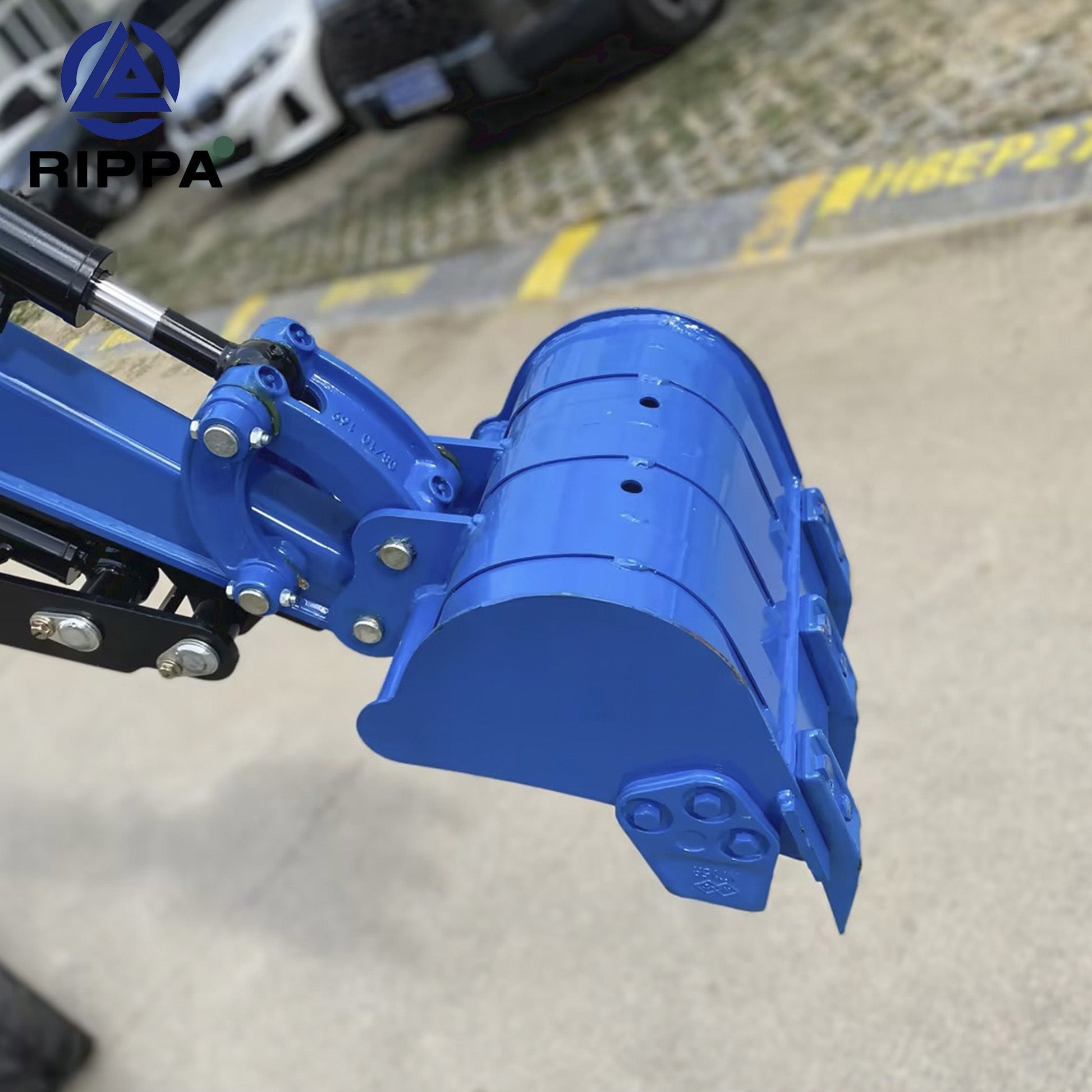

1.3 Tonne | Kubota Japanese Engine with Australia Wide Warranty, Delivered Directly by Kubota | Includes swing boom, telescopic track, and 40 cm digging bucket.
1. Engine

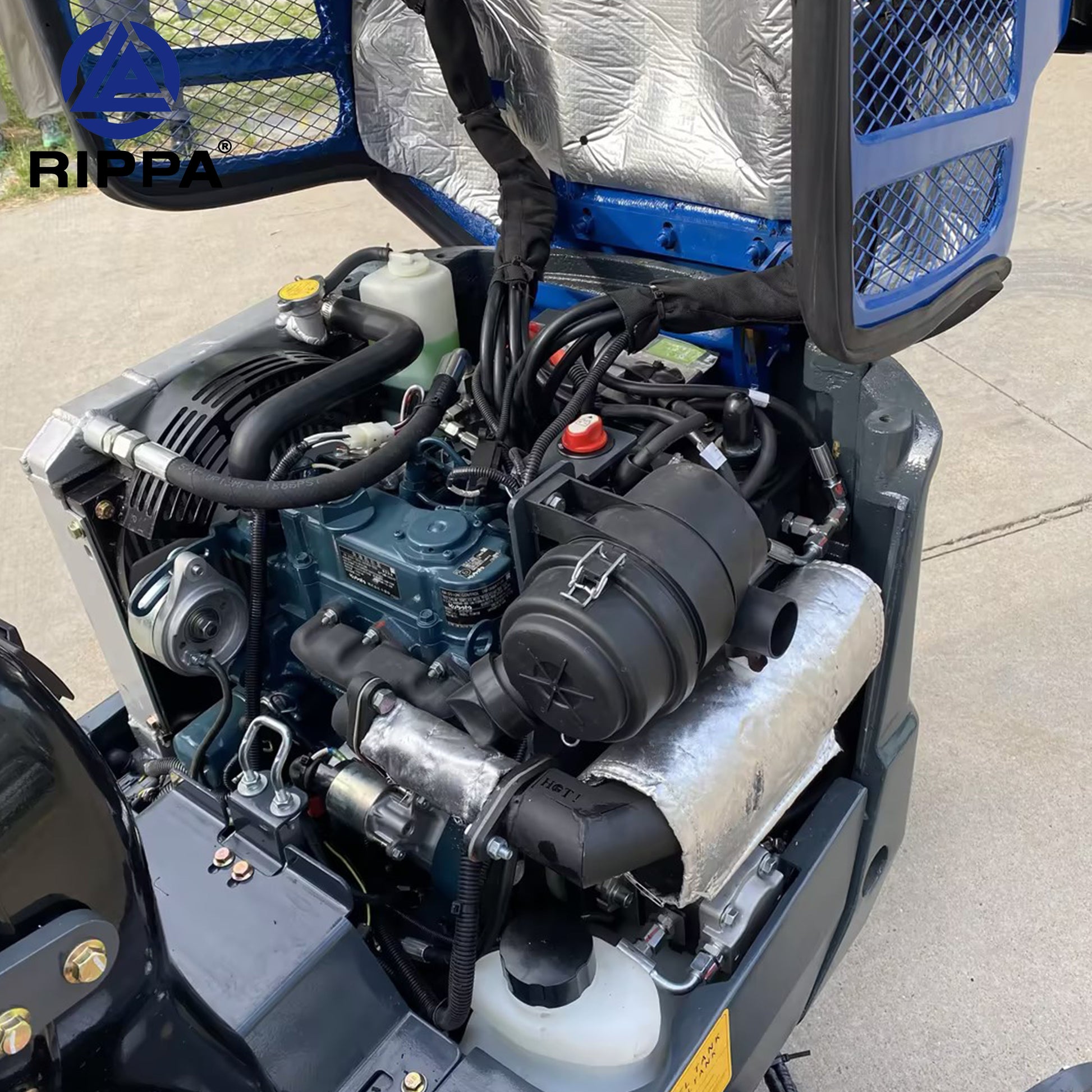

The R13 is fitted with a Kubota Japanese engine with Australia wide warranty, delivered directly by Kubota, delivering 10.2 kW (13.97 HP) at 2500 RPM.
- Kubota D722 – 3-cylinder, water-cooled diesel engine
- Displacement: 0.719 L
- Oil Capacity: 1.5 L
- Long service life, national parts access, and reliable support
2. Fuel
-
Fuel Type: Diesel
-
Fuel Grade: 0# or -10#
-
Fuel Tank Capacity: 10 L
-
Hydraulic Oil Tank: 12 L
3. Performance
-
Operating Weight: 1165 kg
-
Bucket Capacity: 0.03 m³
-
Travel Speed: 0.1–0.5 / 2.8 km/h
-
Ground Pressure: 26.79 KPa
-
Climbing Ability: 30%
-
Digging Force: 9.8 kN
-
Max Digging Distance: 3346 mm
-
Max Digging Depth: 1843 mm
-
Max Dump Height: 2289 mm
-
Max Digging Height: 3015 mm
-
Track Width Adjustment: 750–990 mm
4. Other Specs
-

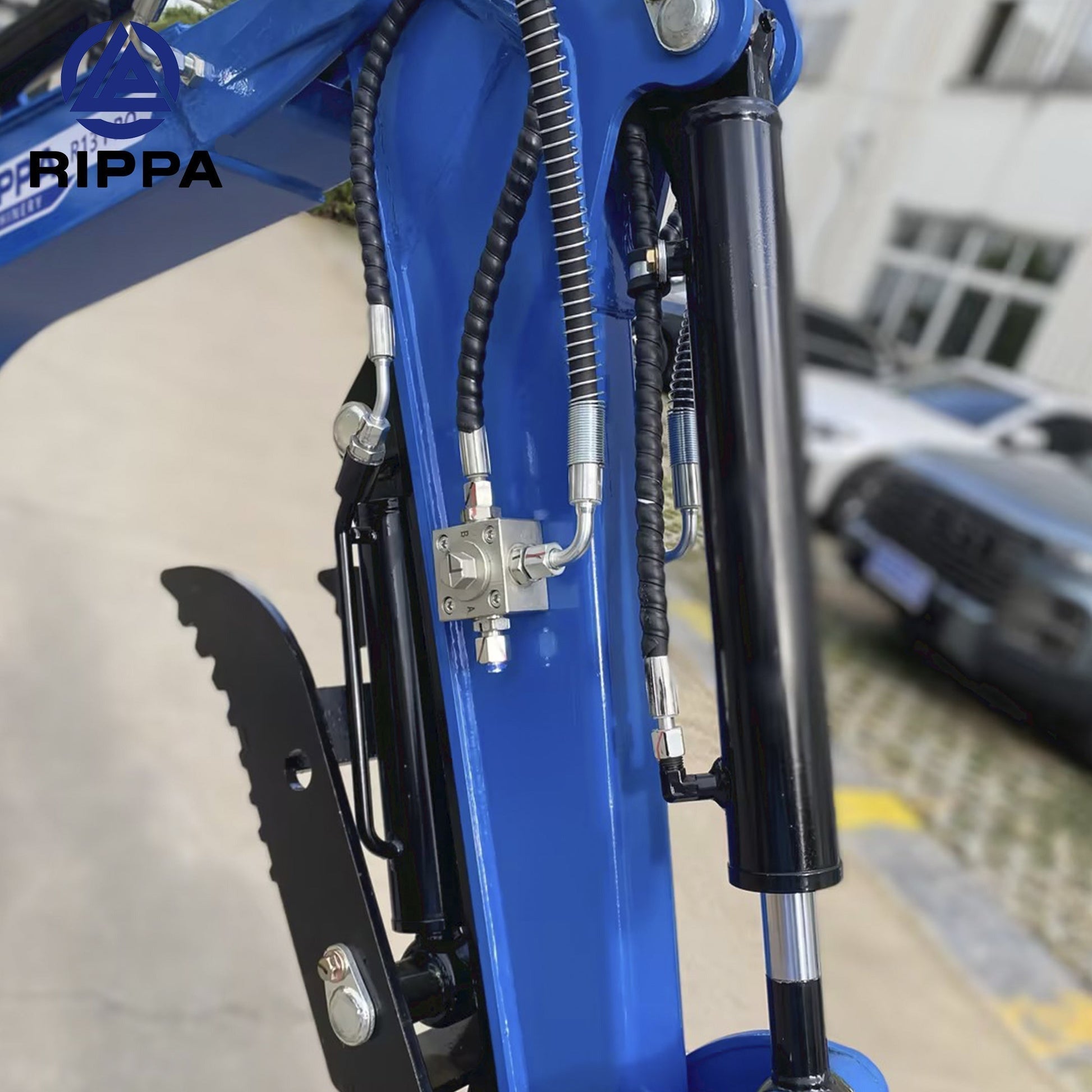

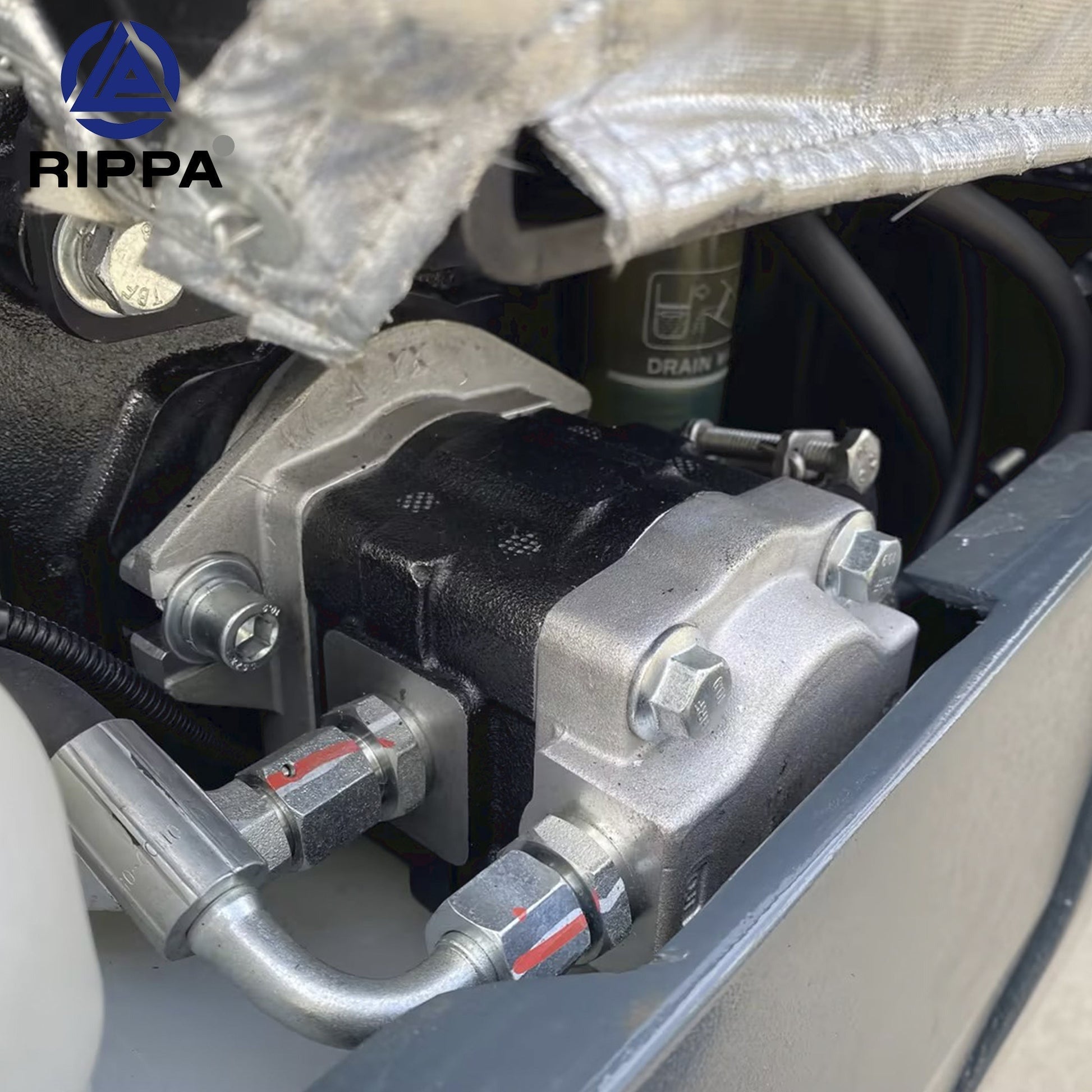

Hydraulic Pump: Gear pump – Tianjin Travel (Model 305)
-
Max Flow: 25 L/min
-
Rated Pressure: 18 MPa | Max: 20 MPa
-
Multi-Way Valve: THD12 – Taifeng
-
Travel Motor: WDM-390 dual-speed – Paiyi
-
Swing Motor: BM2-315
-
Chassis: Steel or rubber tracks, 74 rubber blocks
-
Track Tensioning: Mechanical
-
Quick Hitch: Manual or hydraulic
-
Attachments: Rake, Grabber, Ripper, Breaker
-
Cab / Handrail / Air Conditioning: Optional
- Dimensions:
- Length: 2114 mm
- Width: 990 mm
- Height: 2289 mm
- Ground Clearance: 400 mm
- Blade Width: 750–990 mm
5. Shipping & Logistics
-
Wooden Box: 3200 × 1011 × 1711 mm
-
Compact Box: 1300 × 1050 × 1722 mm
-
Units per 40HQ (Assembled): 13
-
Units per 40HQ (Dismantled): 26
6. Warranty
- Kubota Japanese engine with Australia wide warranty, delivered directly by Kubota
- 1-Year Warranty on Hydraulic Pump
- Nationwide parts support and servicing available
Download digital brochures
Who the R13 is for
The R13 Pro steps up from the R10 with more reach, digging force and a 3-cylinder Kubota engine, while staying compact enough for tight access. With around 1.84 m digging depth, it suits landscapers, plumbers and small earthmoving crews who want a capable do-it-all 1.3-tonne machine for trenching, drainage, footings, pool prep and site clearing.
