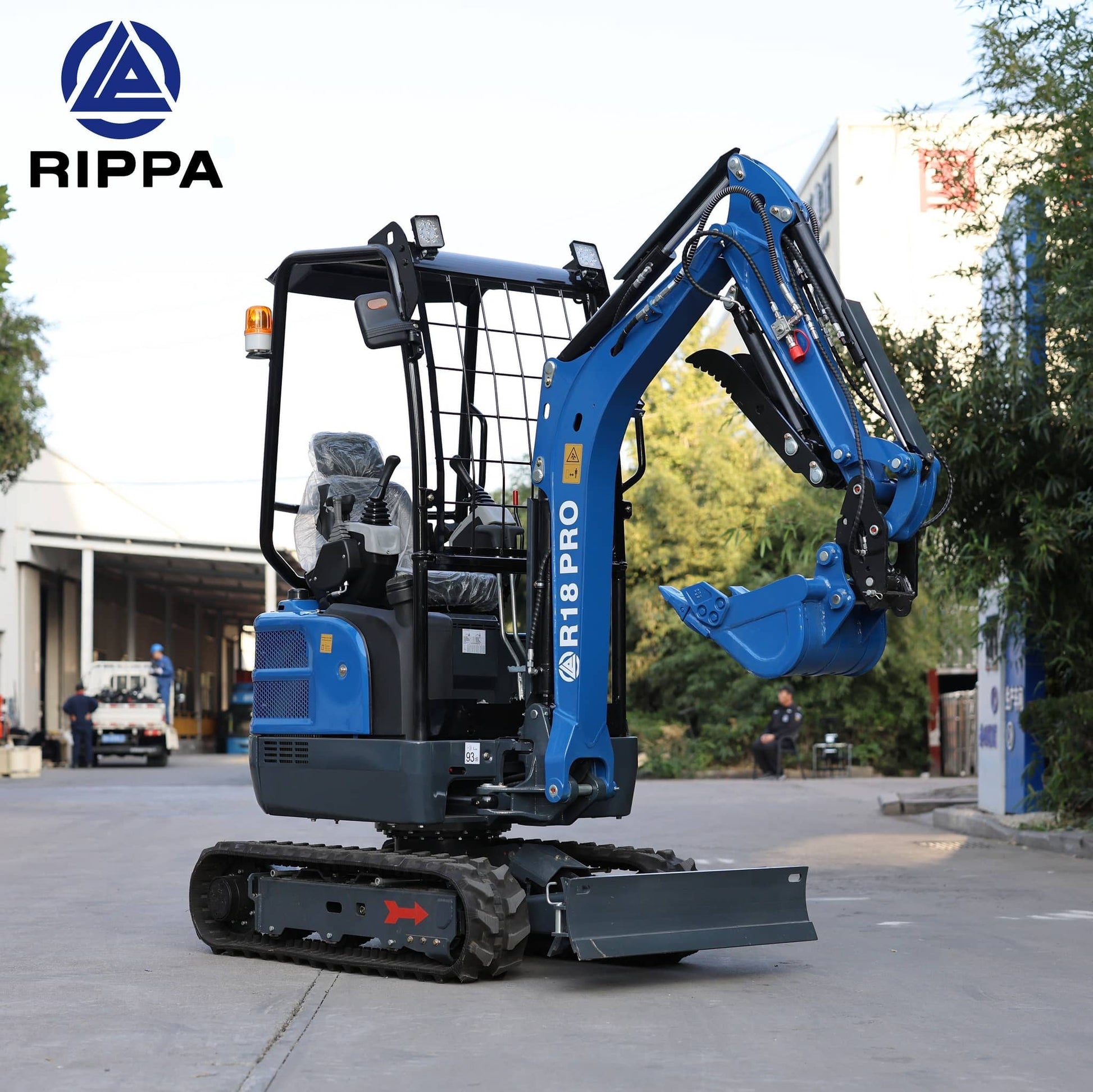

  • Labadi Engineering Mini Excavator R18 Pro with compact design and powerful digging performance
  • Close-up of Labadi Engineering Mini Excavator hydraulic components showcasing detailed design and quality

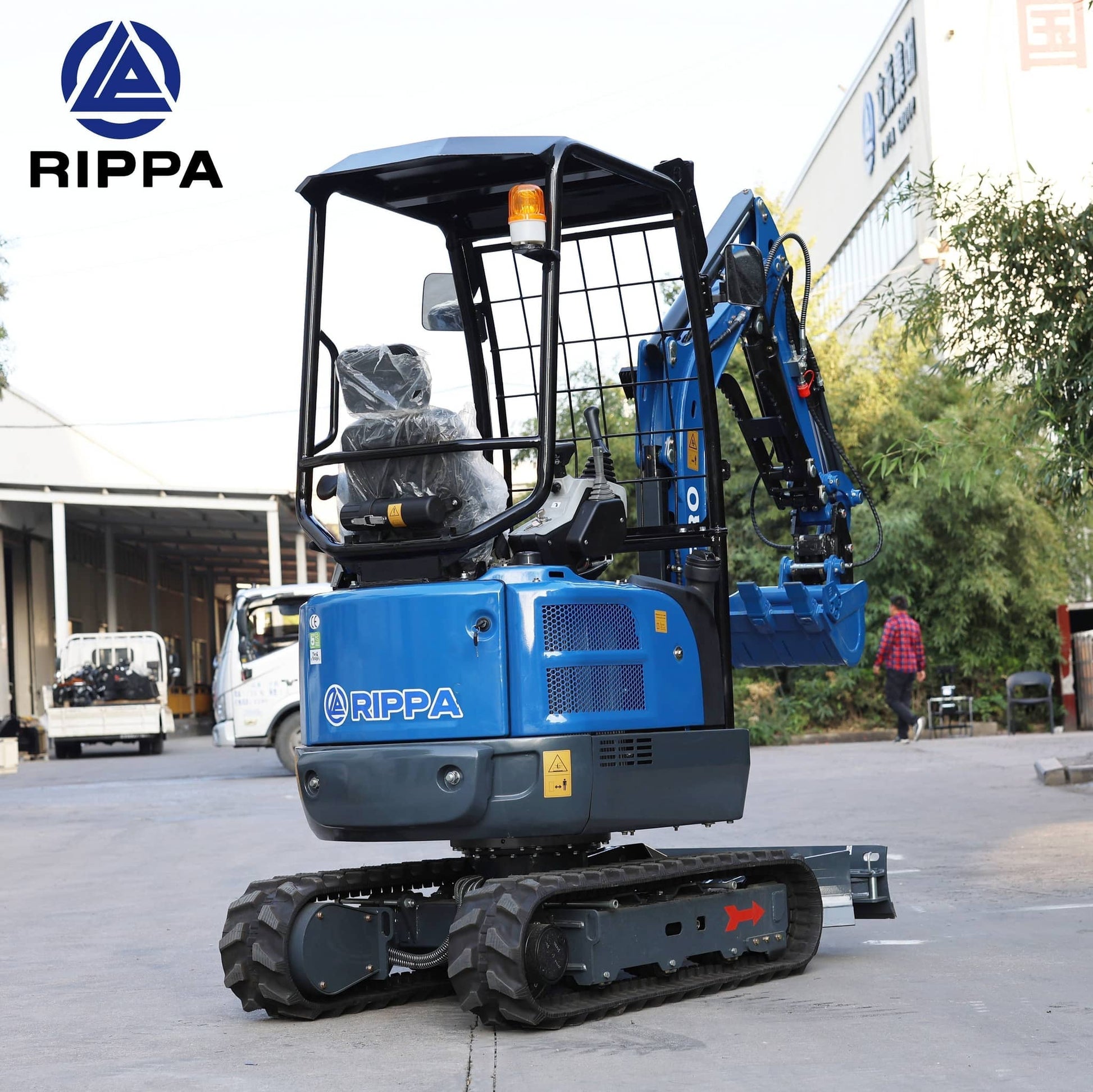

  • Labadi Engineering Mini Excavator in blue with rubber tracks and compact design for construction tasks
  • Labadi Engineering Mini Excavator attachment with durable metal design for efficient digging and construction tasks
  • Labadi Engineering Mini Excavator close-up showing hydraulic components and mechanical design

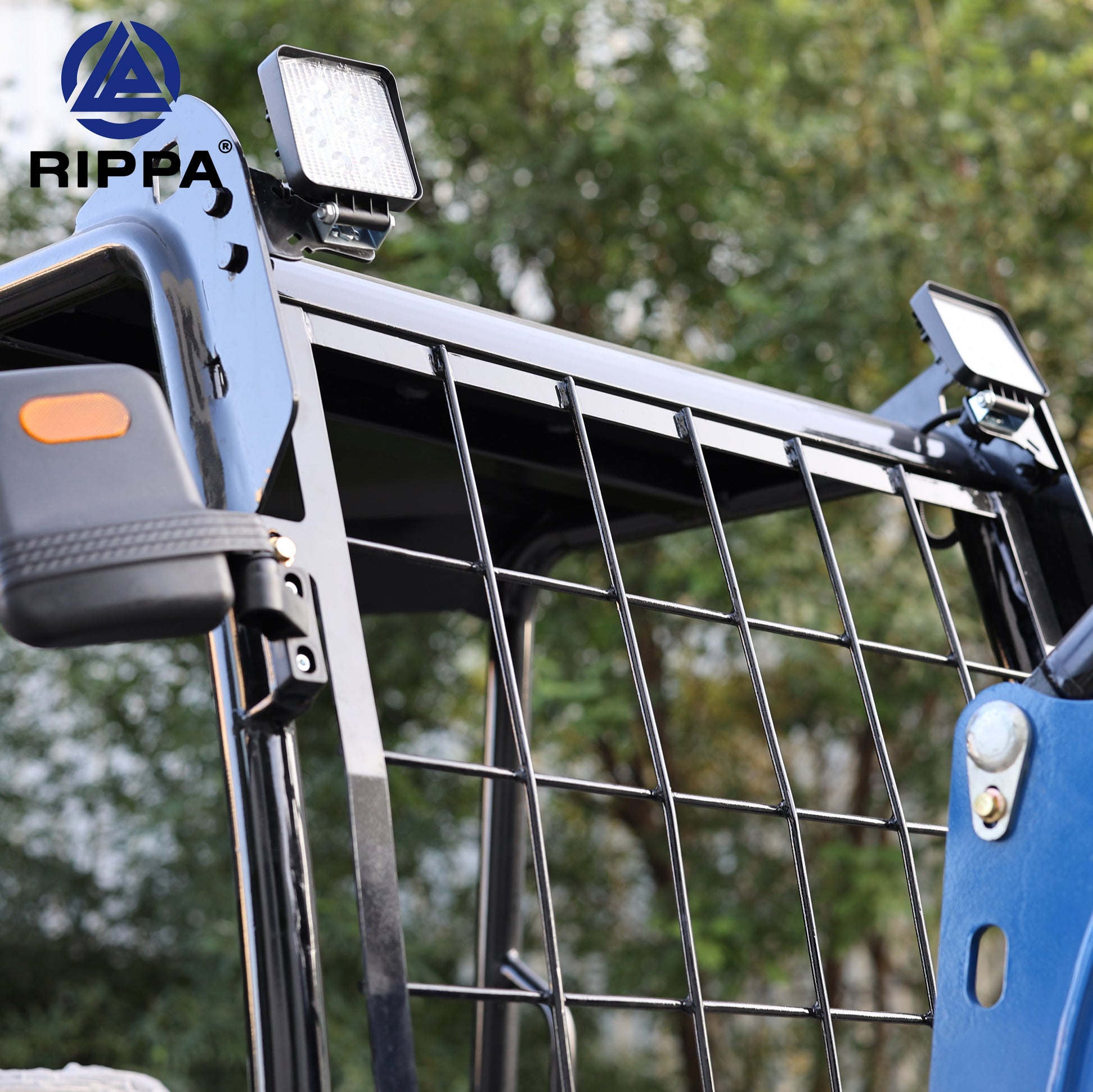

  • Close-up of Labadi Engineering Mini Excavator with safety frame and lights for enhanced visibility
  • Close-up of Labadi Engineering Mini Excavator engine highlighting compact design and advanced features
1 9

Labadi Engineering

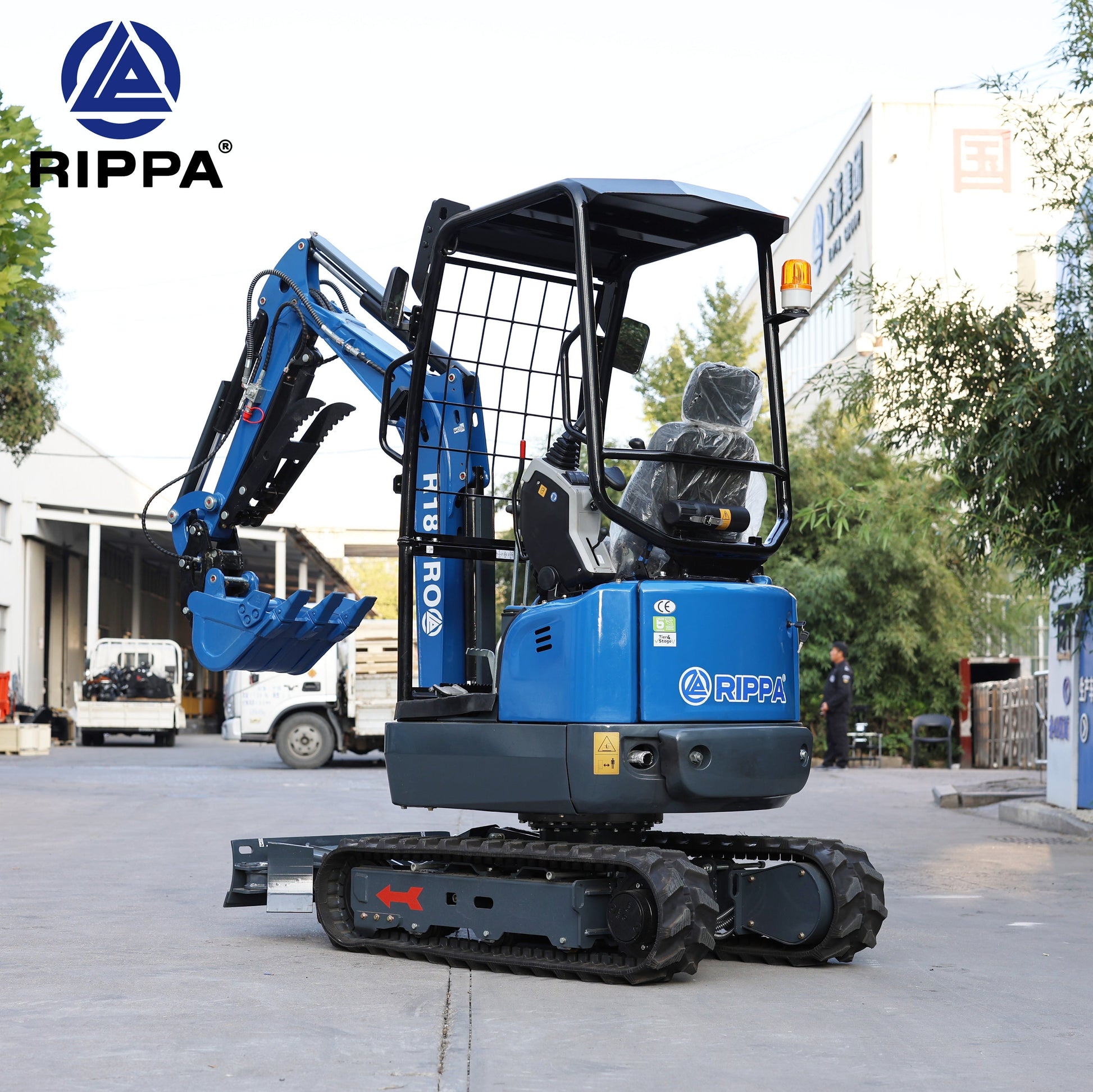

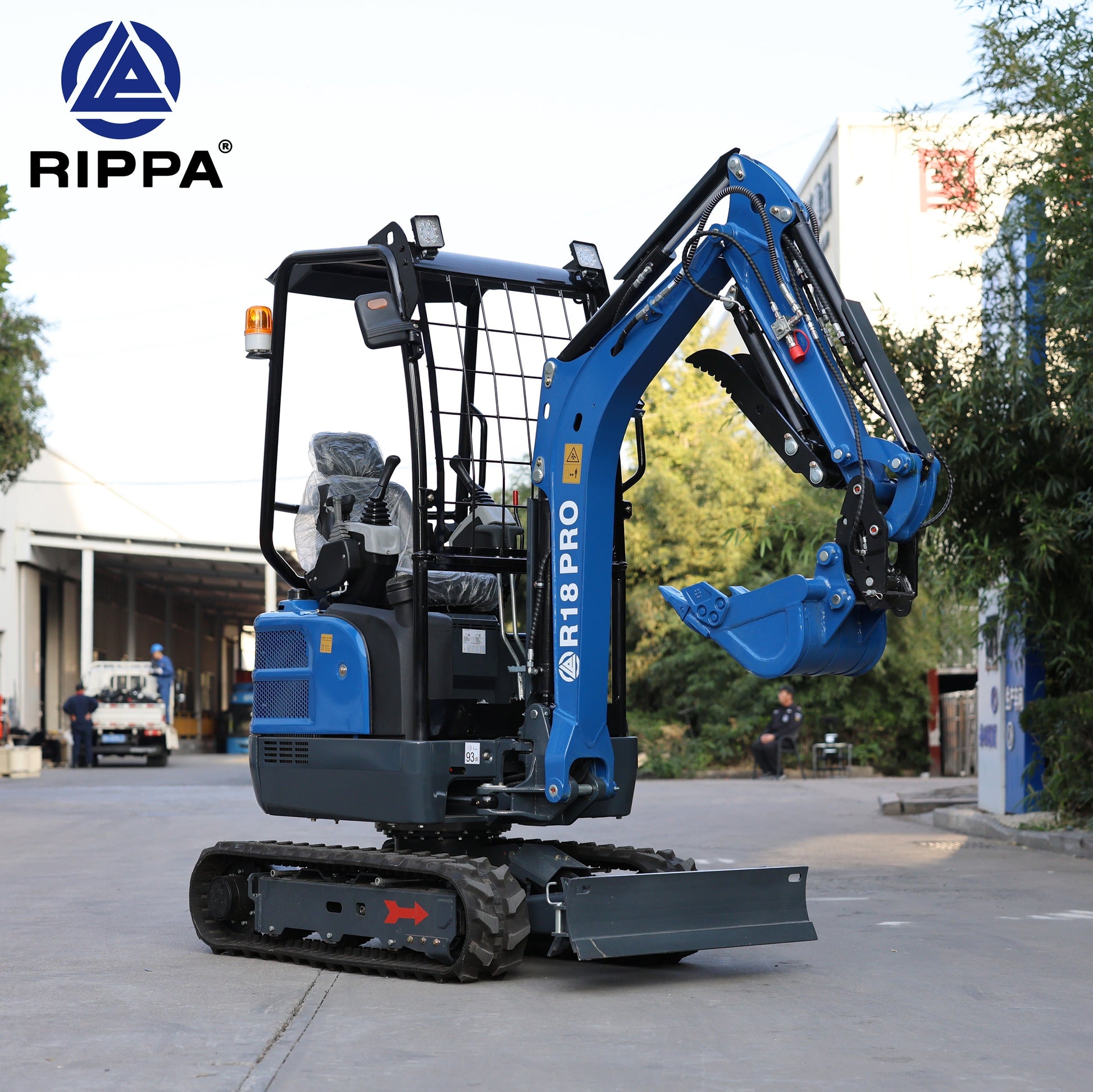

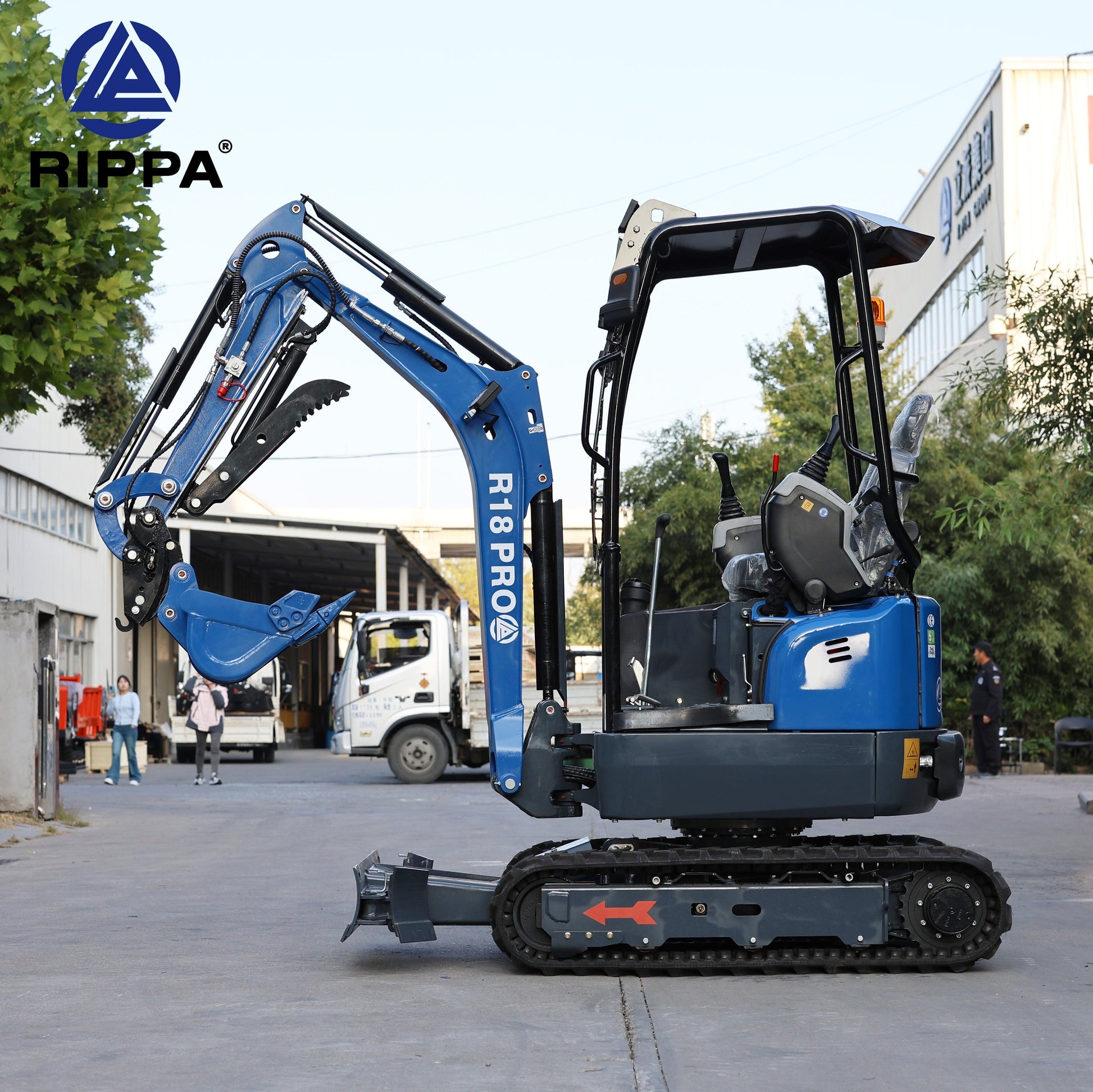

R18 Mini Excavator with Kubota Engine and Hydraulic Quick Hitch

R18 Mini Excavator with Kubota Engine and Hydraulic Quick Hitch

$23,299.00 AUD
$25,599.00 AUD $23,299.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

R18 Mini Excavator with Kubota Engine and Hydraulic Quick Hitch

1.8 Tonne | Kubota Japanese Engine with Australia Wide Warranty, Delivered Directly by Kubota | Includes swing boom, telescopic track, and 40 cm digging bucket.

1. Engine

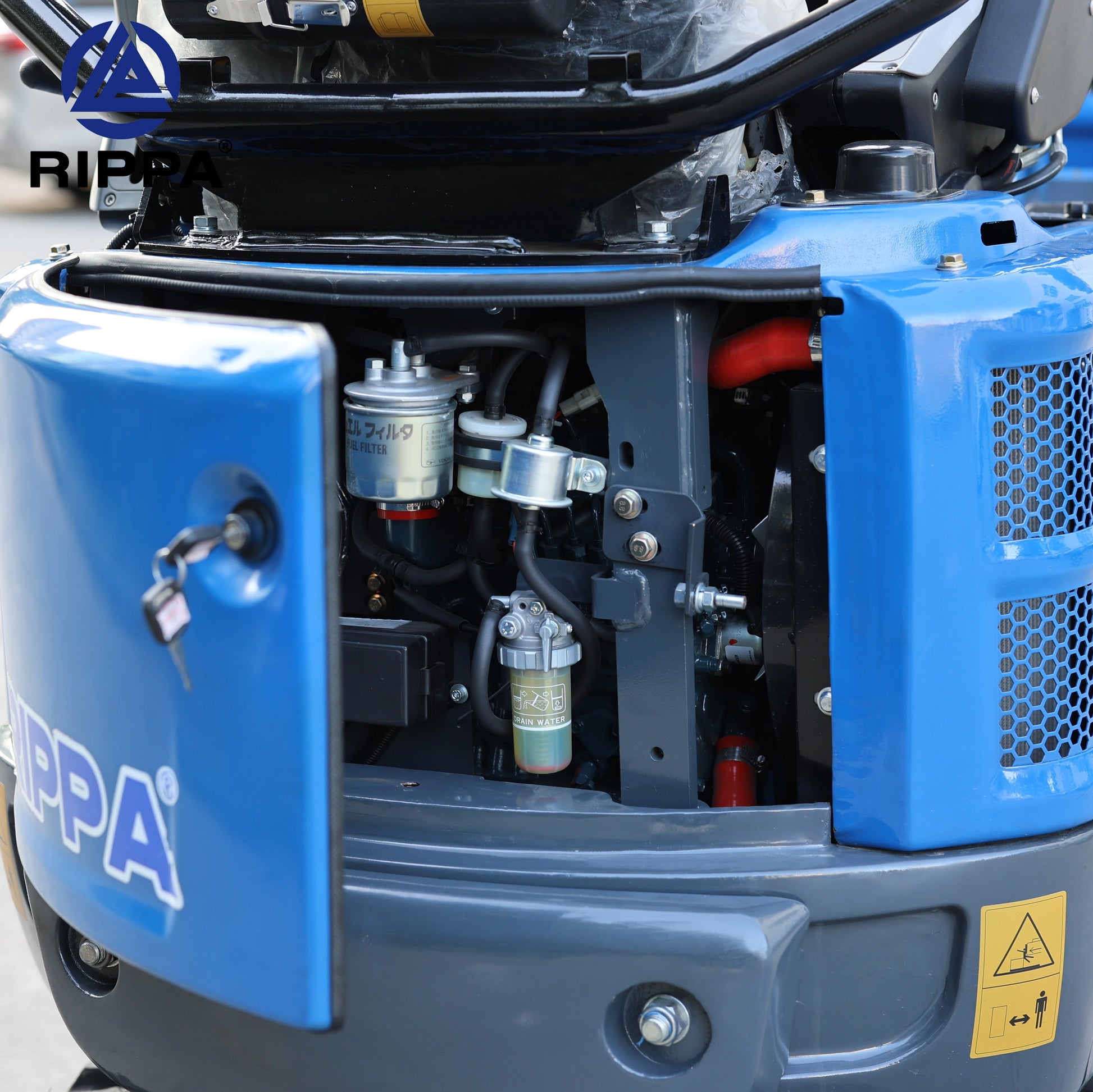

The R18 is powered by a Kubota Japanese engine with Australia wide warranty, delivered directly by Kubota, delivering 11.8 kW (16.1 HP) at 2300 RPM.

  • Engine Model: Kubota D902 – 3-cylinder, water-cooled diesel engine
  • Displacement: 0.898 L
  • Oil Capacity: 3.7 L
  • Low vibration, high output, fuel-efficient
  • Reliable nationwide parts and service coverage

2. Fuel

  • Fuel Type: Diesel
  • Fuel Grade: 0# or -10#
  • Fuel Tank Capacity: 24 L
  • Hydraulic Oil Tank: 22 L

3. Performance

  • Operating Weight: 1818 kg
  • Bucket Capacity: 0.045 m³
  • Travel Speed: 0–1.5 / 0–2.8 km/h
  • Ground Pressure: 30.33 KPa
  • Climbing Ability: 30%
  • Digging Force: 12.8 kN
  • Max Digging Radius: 3975 mm
  • Max Digging Depth: 2420 mm
  • Max Dump Height: 2182 mm
  • Max Digging Height: 3187 mm
  • Track Width Adjustment: 989–1309 mm

4. Other Specs

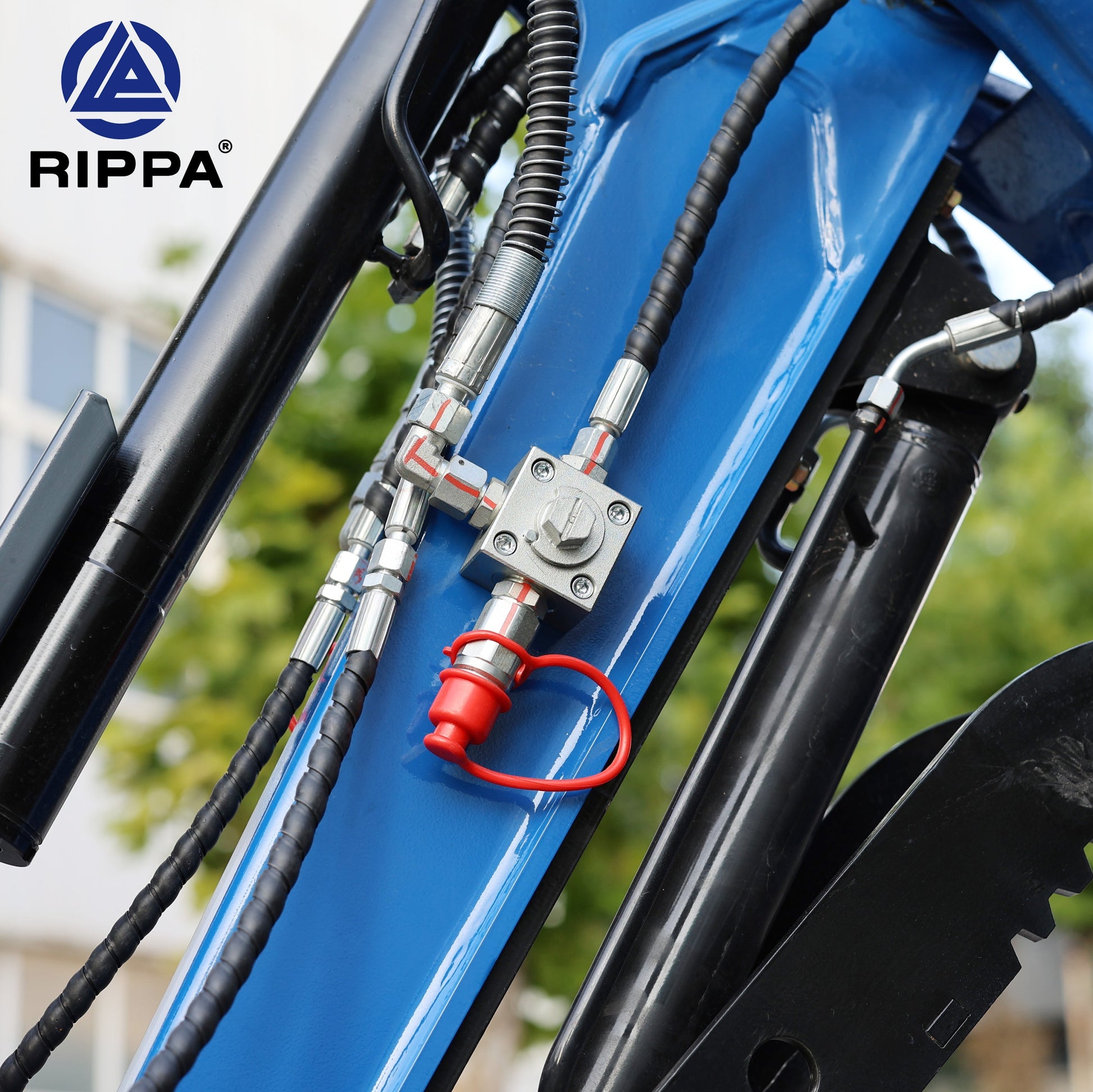

  • Hydraulic Pump: Variable piston pump (Model 18 – Taifeng)
  • Max Flow: 41.4 L/min
  • Rated Pressure: 18 MPa | Max Pressure: 22 MPa
  • Multi-Way Valve: 9-way – Taifeng
  • Travel Motor: Built-in LTM02PA – Likechuan
  • Swing Motor: Hydraulic – 245 displacement
  • Chassis: Rubber or steel tracks, 78 rubber blocks
  • Track Tensioning: Butter tensioner

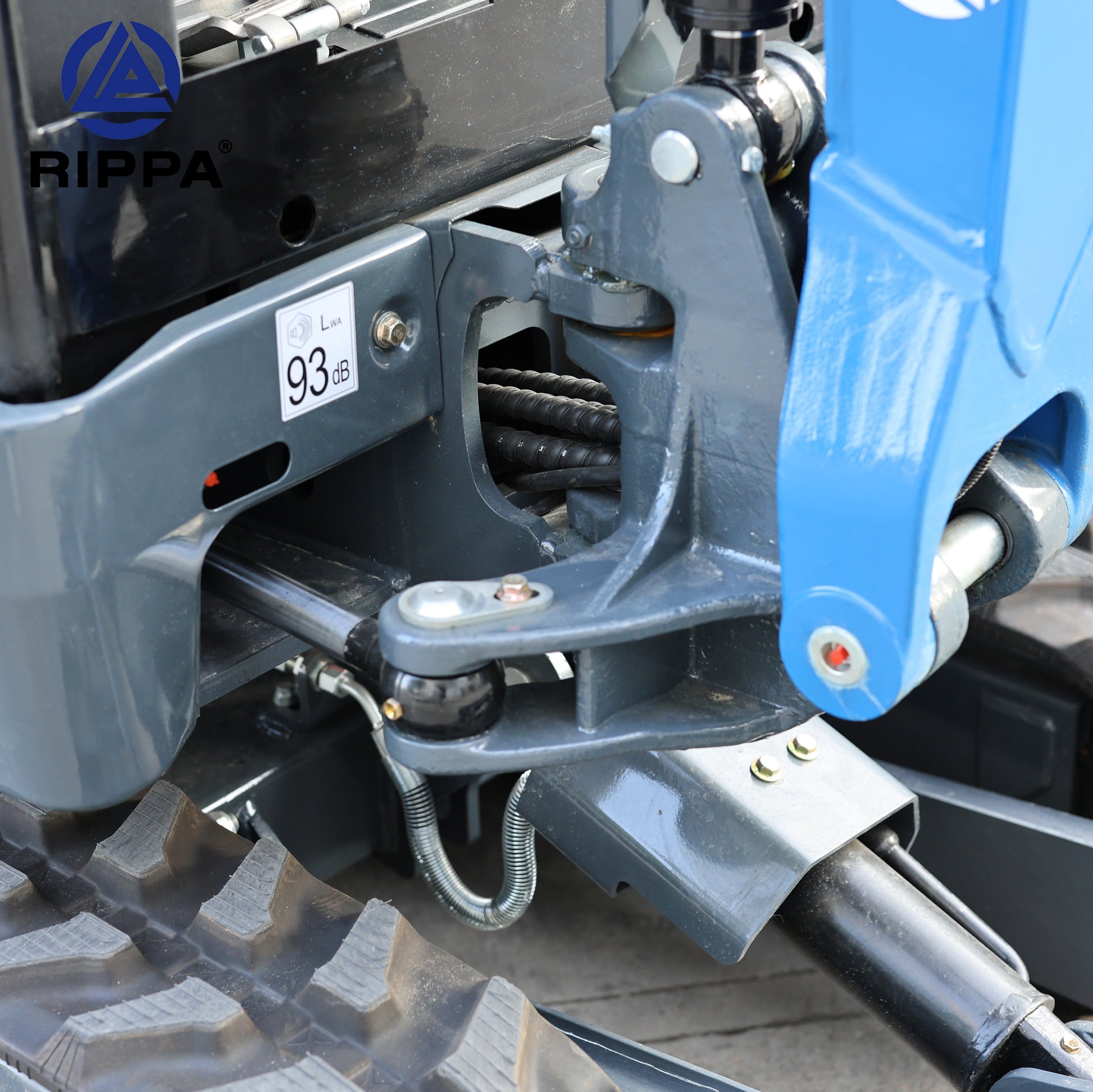

  • Quick Hitch: Manual or hydraulic
  • Attachments: Rake, Grabber, Ripper, Breaker
  • Cab: –
  • Handrail: –
  • Dimensions:
    • Length: 2403 mm
    • Width: 989 mm
    • Height: 2322 mm
    • Ground Clearance: 486 mm

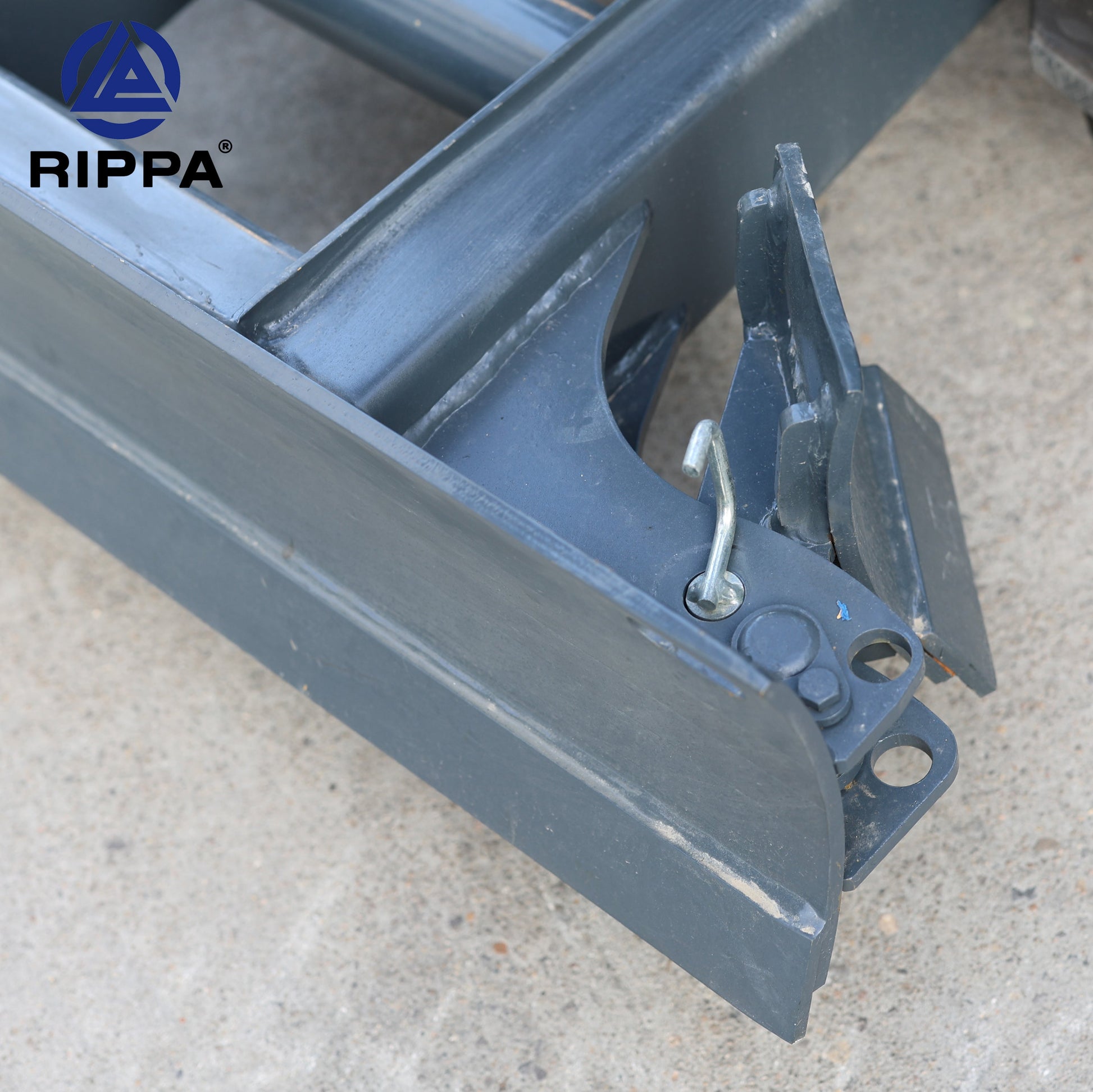

    • Blade Width: 990 / 1300 mm

5. Shipping & Logistics

  • Wooden Box Size: 3500 × 1200 × 2000 mm
  • Units per 40HQ (Assembled): 12

6. Warranty

  • Kubota Japanese engine with Australia wide warranty, delivered directly by Kubota
  • 1-Year Warranty on Hydraulic Pump
  • Full nationwide parts support and servicing available
