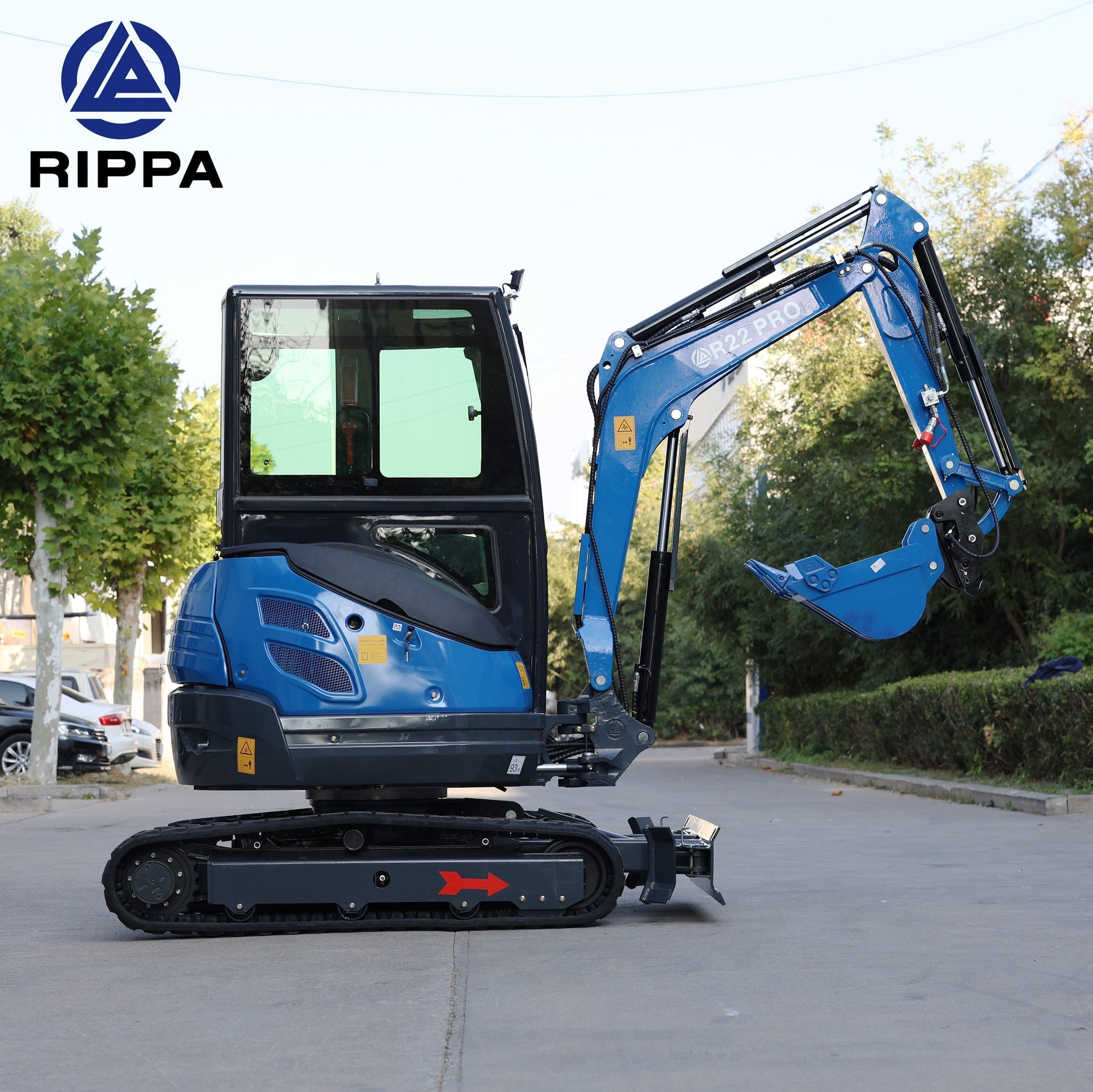

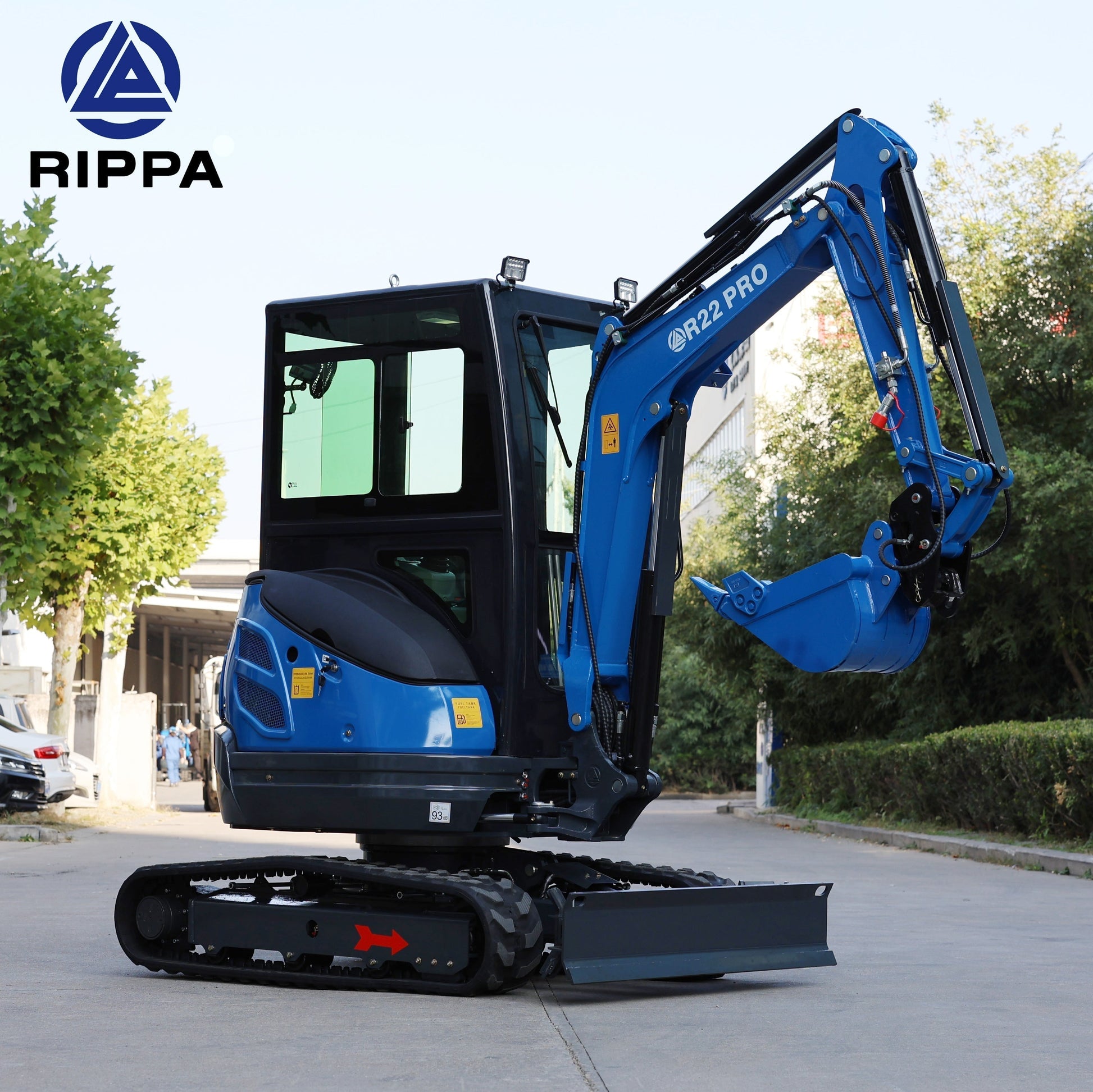

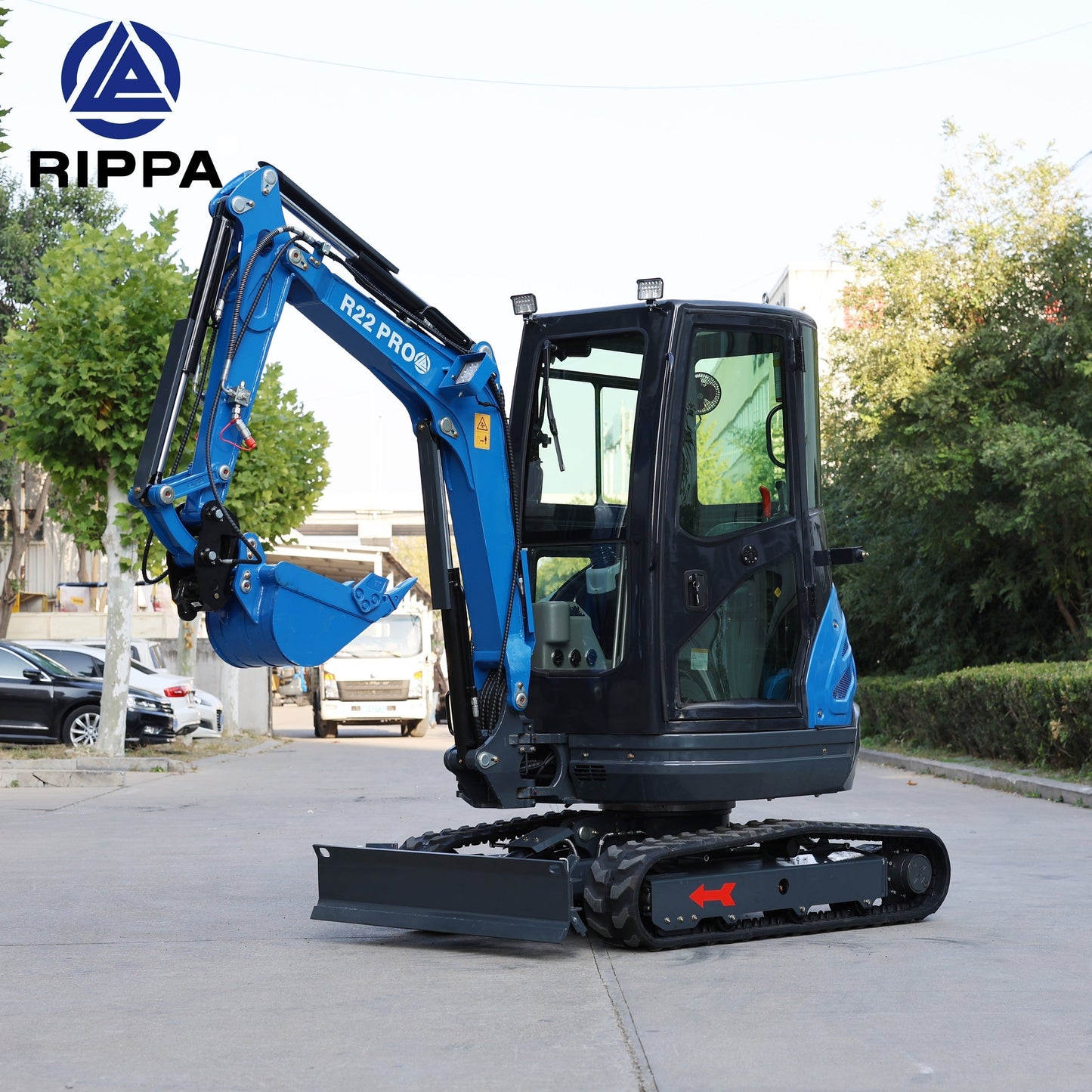

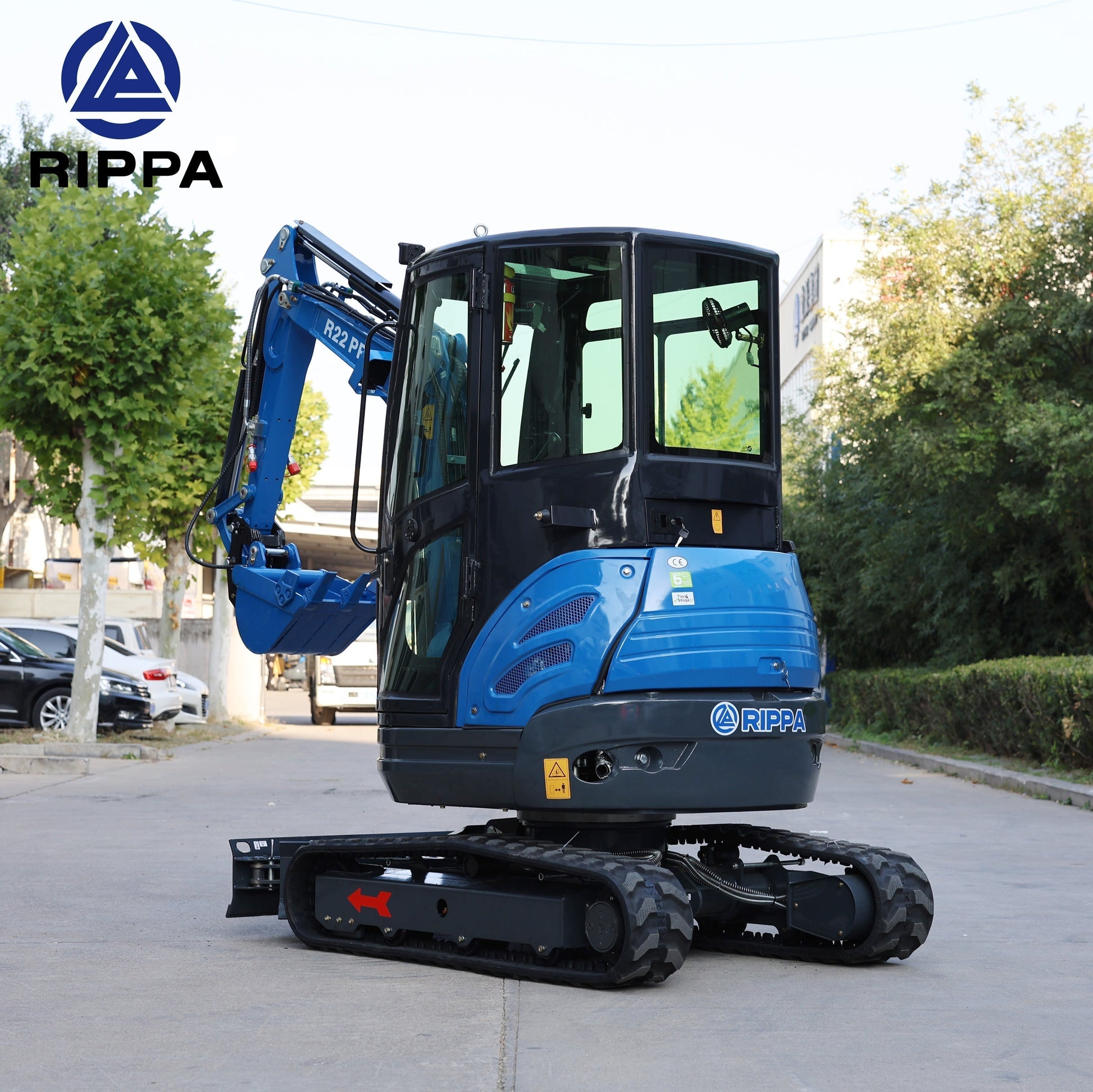

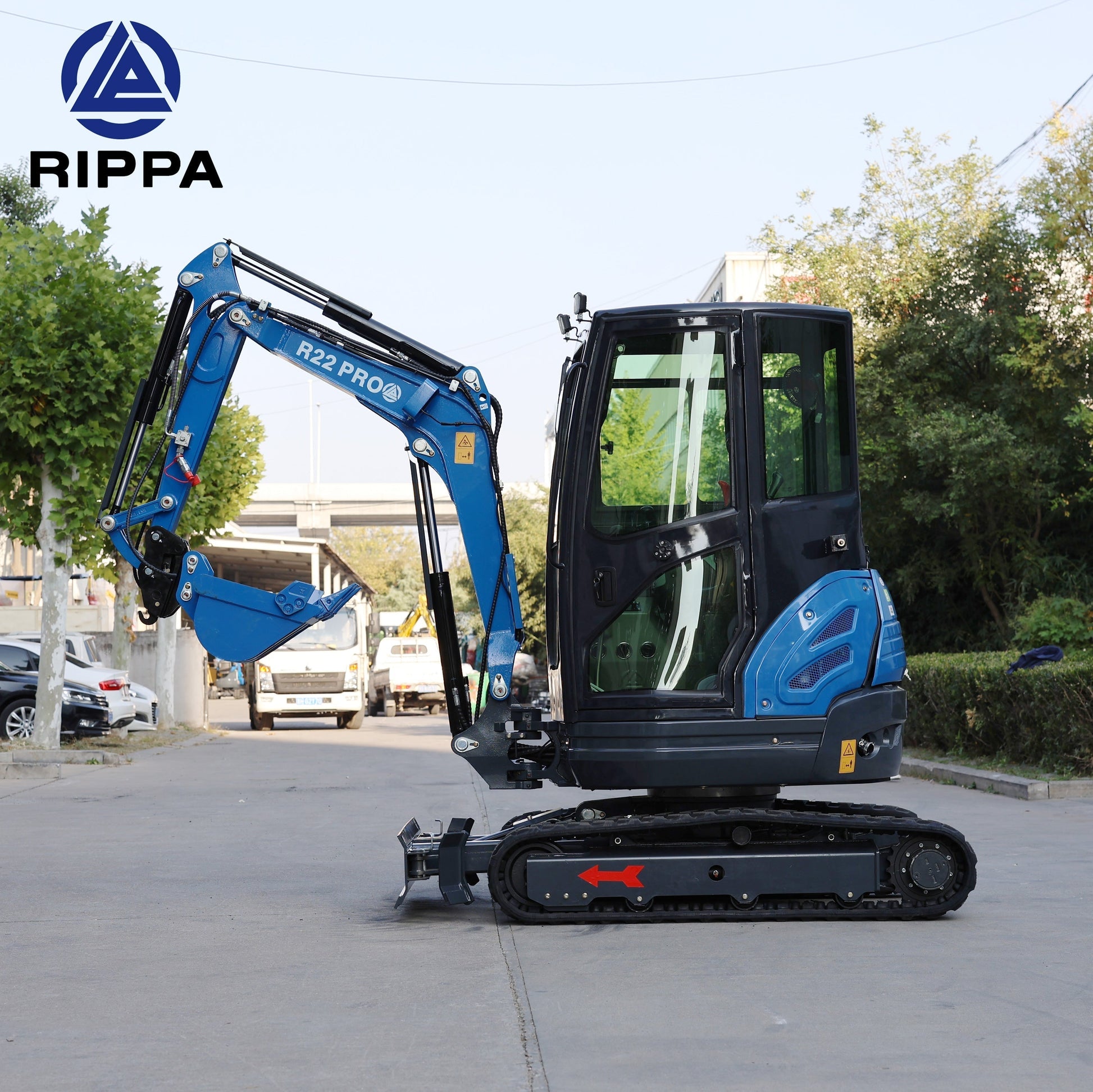

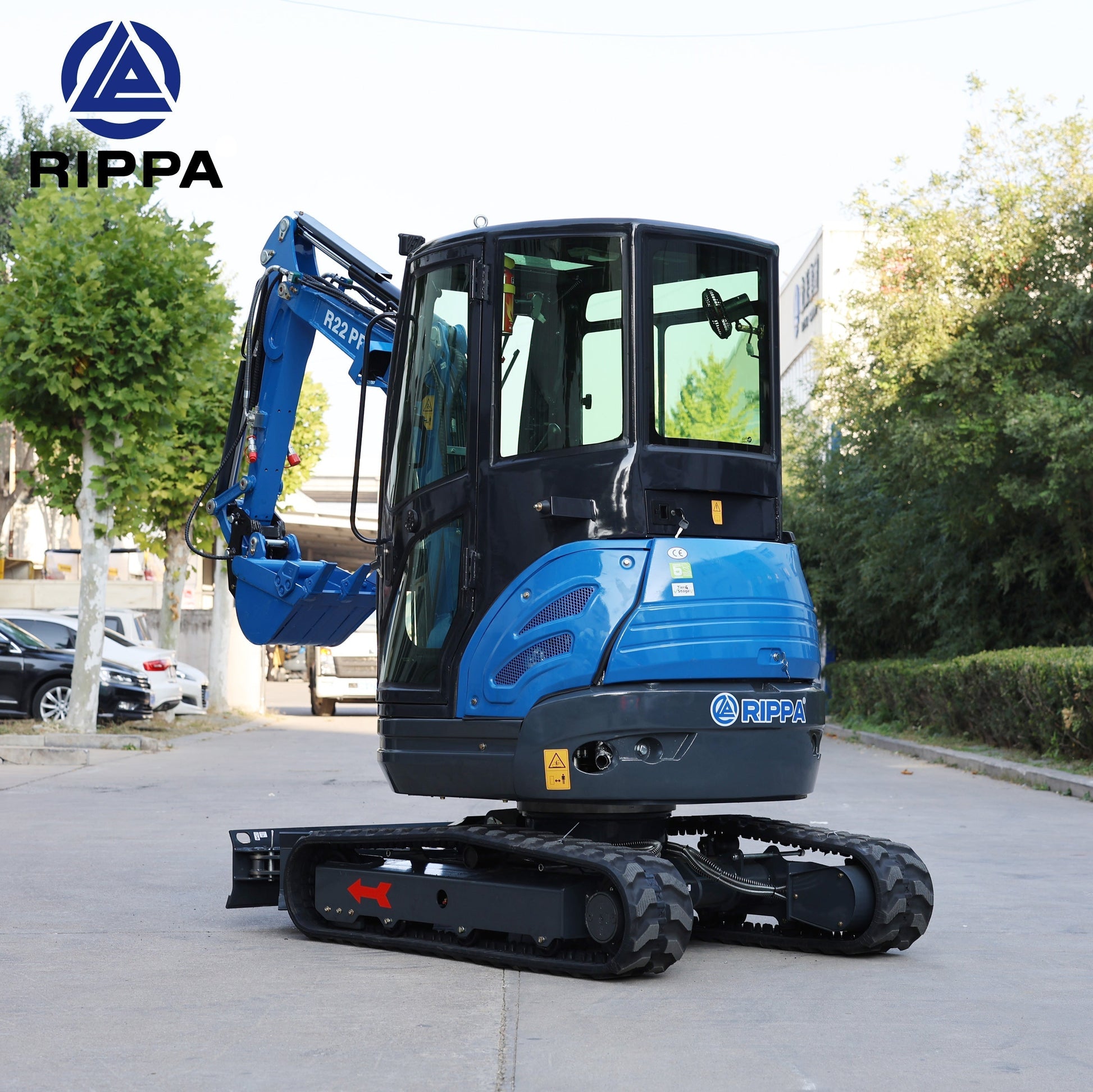

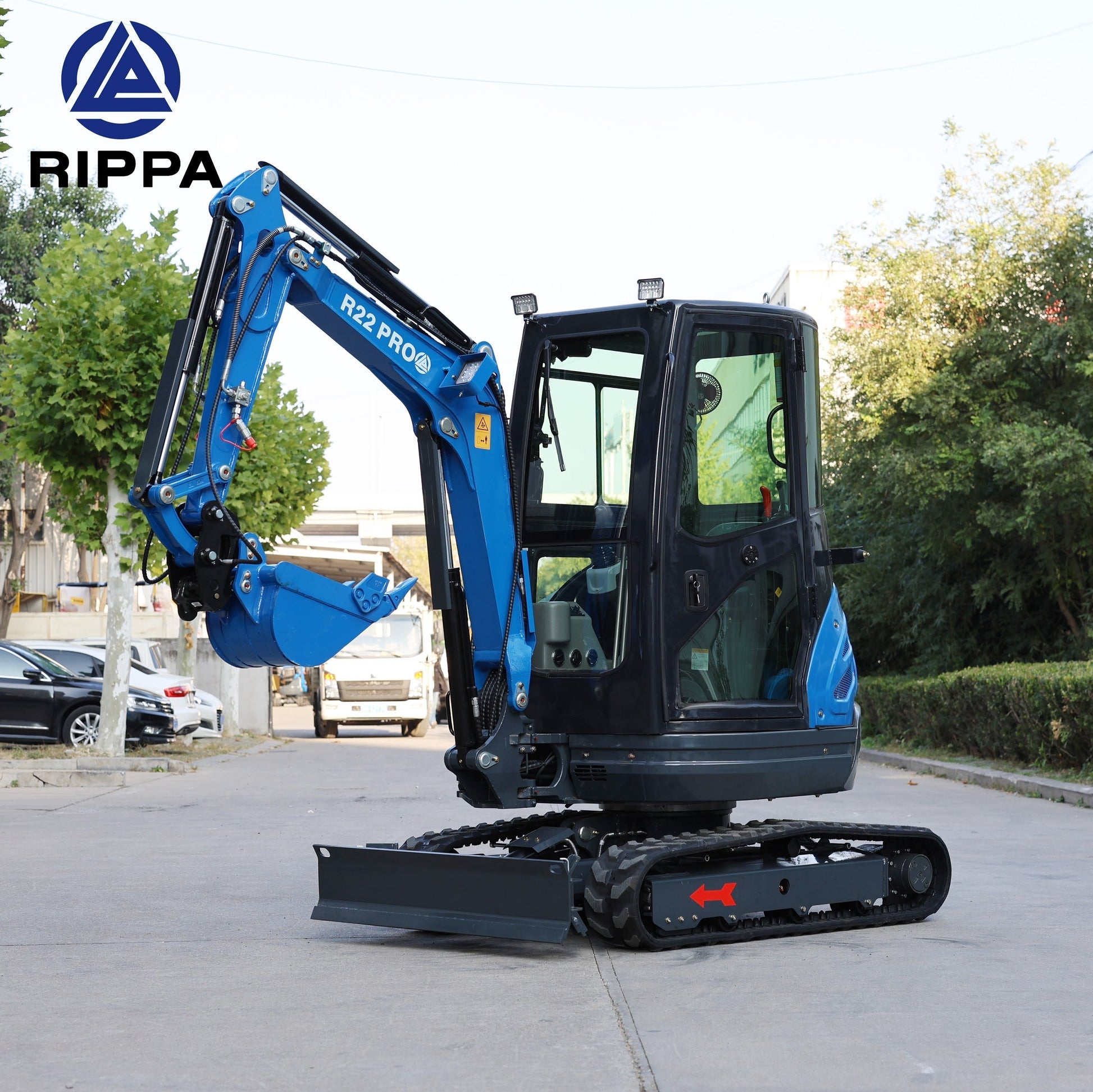

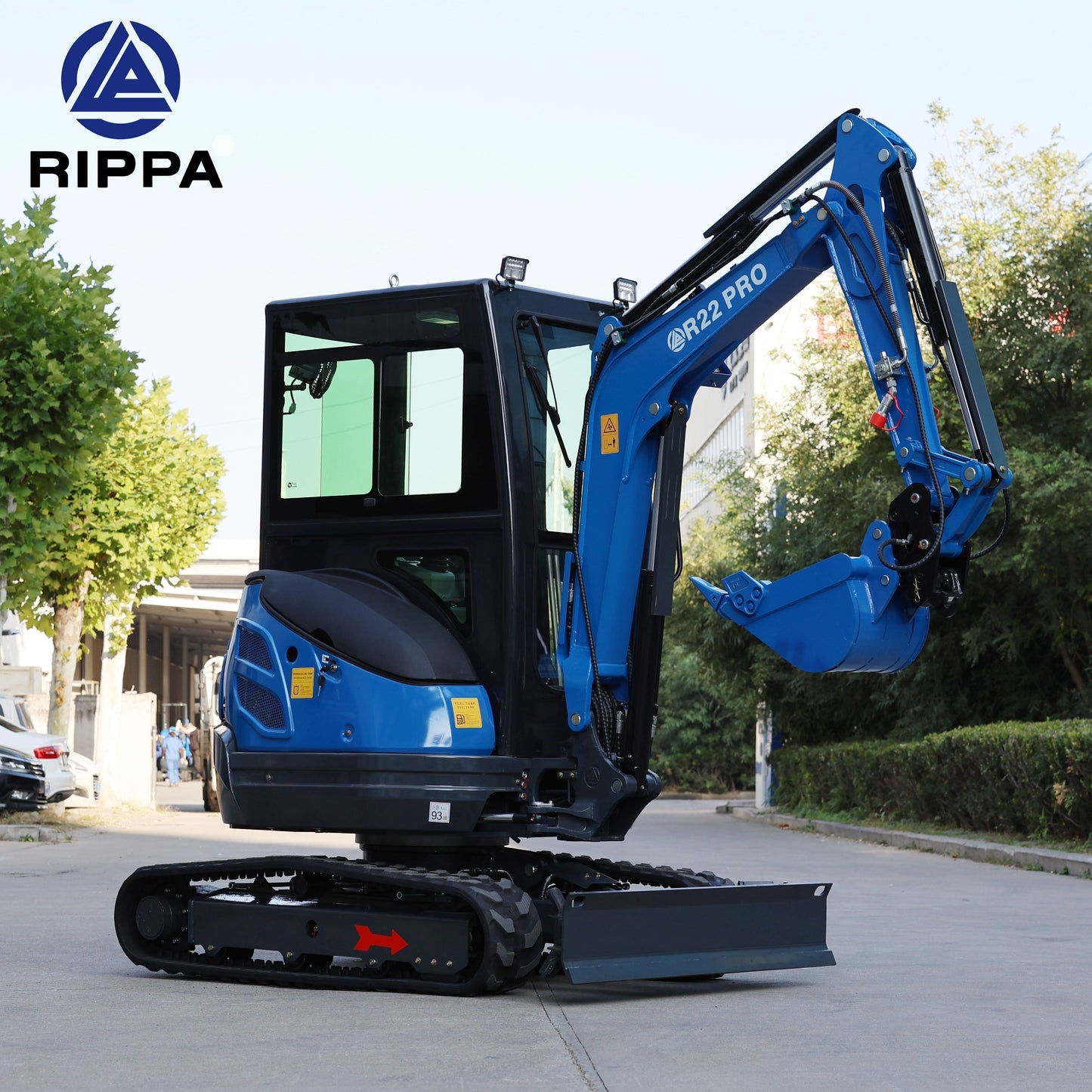

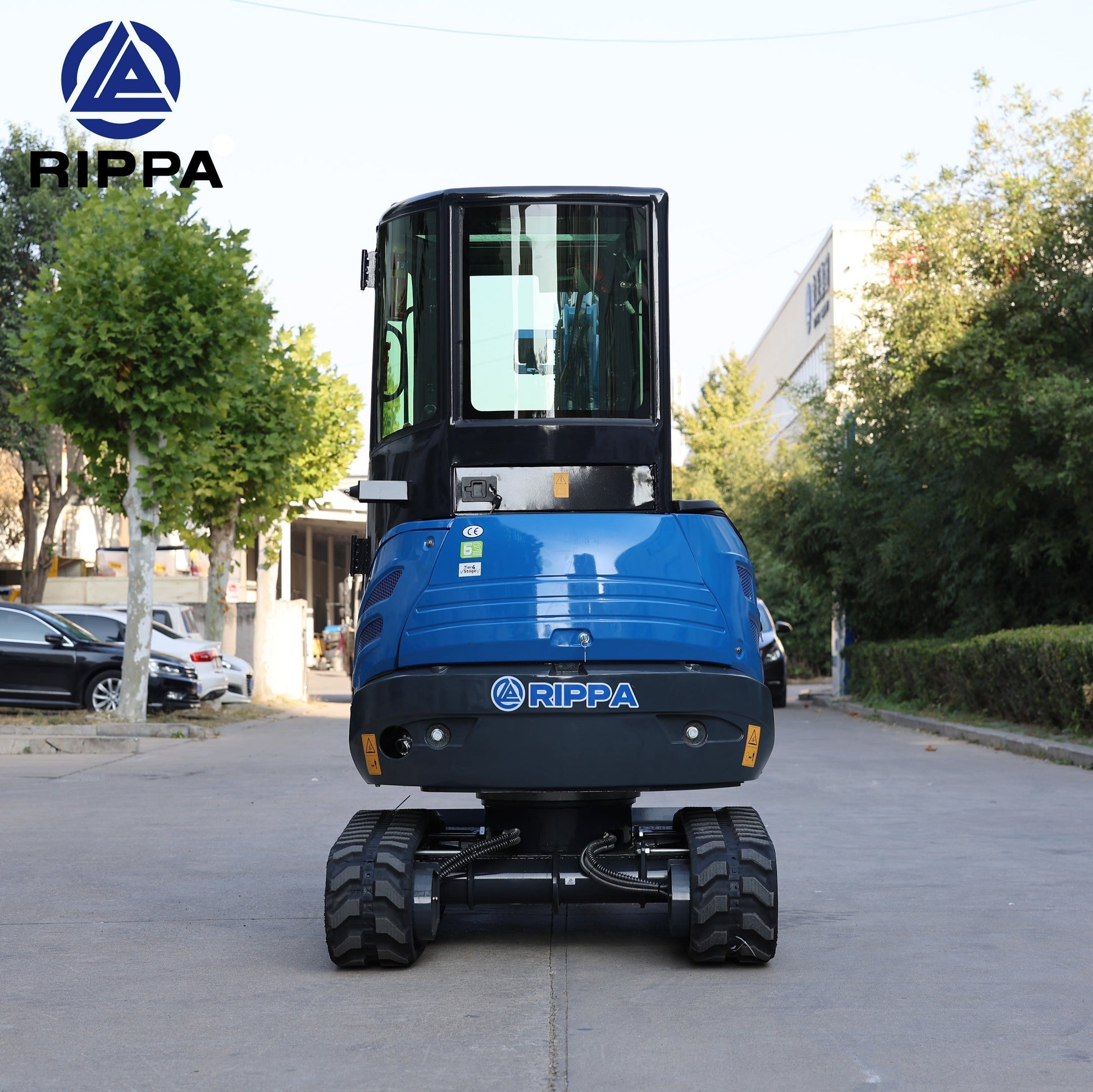

R22 Mini Excavator – Pro XD Series
2.3 Tonne | Kubota D1105 Engine | Hydraulic Power | Built for Australian Conditions
The R22 is Labadi Engineering’s flagship mini excavator in the Pro XD lineup — delivering outstanding power, reach, and hydraulic performance in a compact, operator-friendly package. Designed for Australian job sites, the R22 is ideal for civil contractors, earthworks, utilities, and commercial landscaping.
With a high-output Kubota D1105 diesel engine, load-sensitive hydraulics, and a rugged undercarriage, the R22 ensures reliable operation across demanding applications. Its adjustable track width, broad digging reach, and extensive attachment compatibility make it a smart investment for professionals seeking flexibility and power in one compact unit.
R22 Mini Excavator – Specifications
Model
Code: R22-1 Pro-FZ-JBT(1105)-ZS-SS-CB-N-JSS-K-X-CY
Performance
Operating Weight: 2371.5 kg
Bucket Capacity: 0.054 m³
Travel Speed: 0–1.5 / 0–2.8 km/h
Climbing Ability: 30%
Ground Pressure: 33.4 KPa
Max Digging Force: 18.4 kN
Max Digging Radius: 4143 mm
Max Digging Depth: 2391 mm
Max Digging Height: 3761 mm
Max Dump Height: 2496 mm
Max Deflection Angle: 125°
Track Width Adjustment: 1300–1500 mm

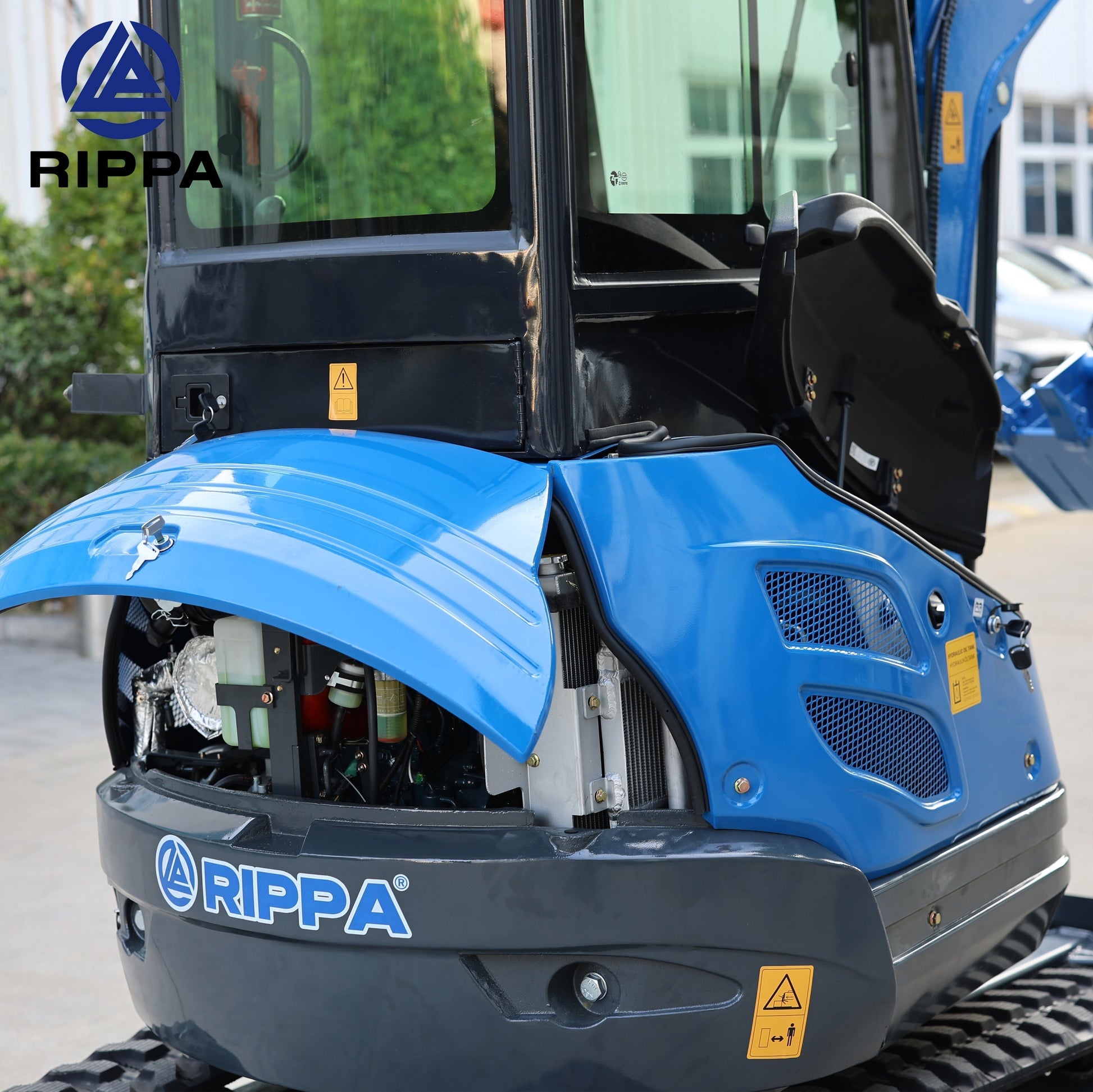

Engine
Brand: Kubota
Model: D1105
Max Power: 18.2 kW (24.75 HP)
Max RPM: 3000 rpm
Displacement: 1.123 L
Cylinders: 3
Cooling: Water-cooled
Oil Capacity: 4.2 L
Fuel Type: Diesel
Fuel Grade: 0# or -10#

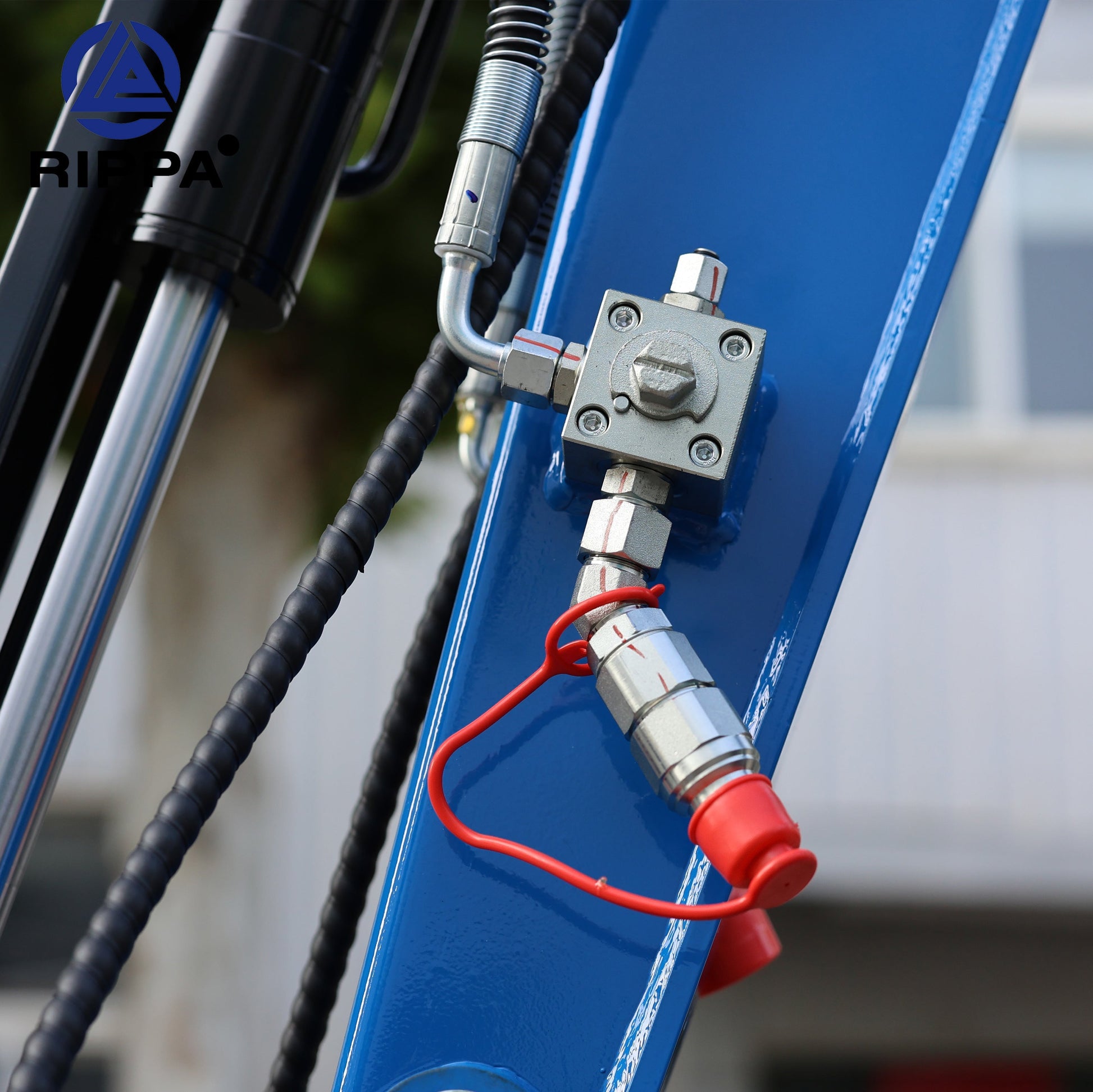

Hydraulic System
Pump Type: Load-sensitive variable piston
Pump Model: 28
Pump Brand: Taifeng
Max Flow: 67.2 L/min
Rated Pressure: 18 MPa
Max Pressure: 20 MPa
Multi-way Valve: 9-way hydraulic
Valve Brand: Taifeng
Travel Motor: LTM03CDK (Likechuan)
Travel Motor Displacement: 11–20
Swing Motor: Likechuan
Swing Motor Displacement: 15.1
Chassis & Frame
Quick Hitch: Manual ○ / Hydraulic ○
Attachments Compatible: Rake, Grabber, Ripper, Breaker ◎
Counterweight: ◎ Optional
Track Tensioning: Butter tightening

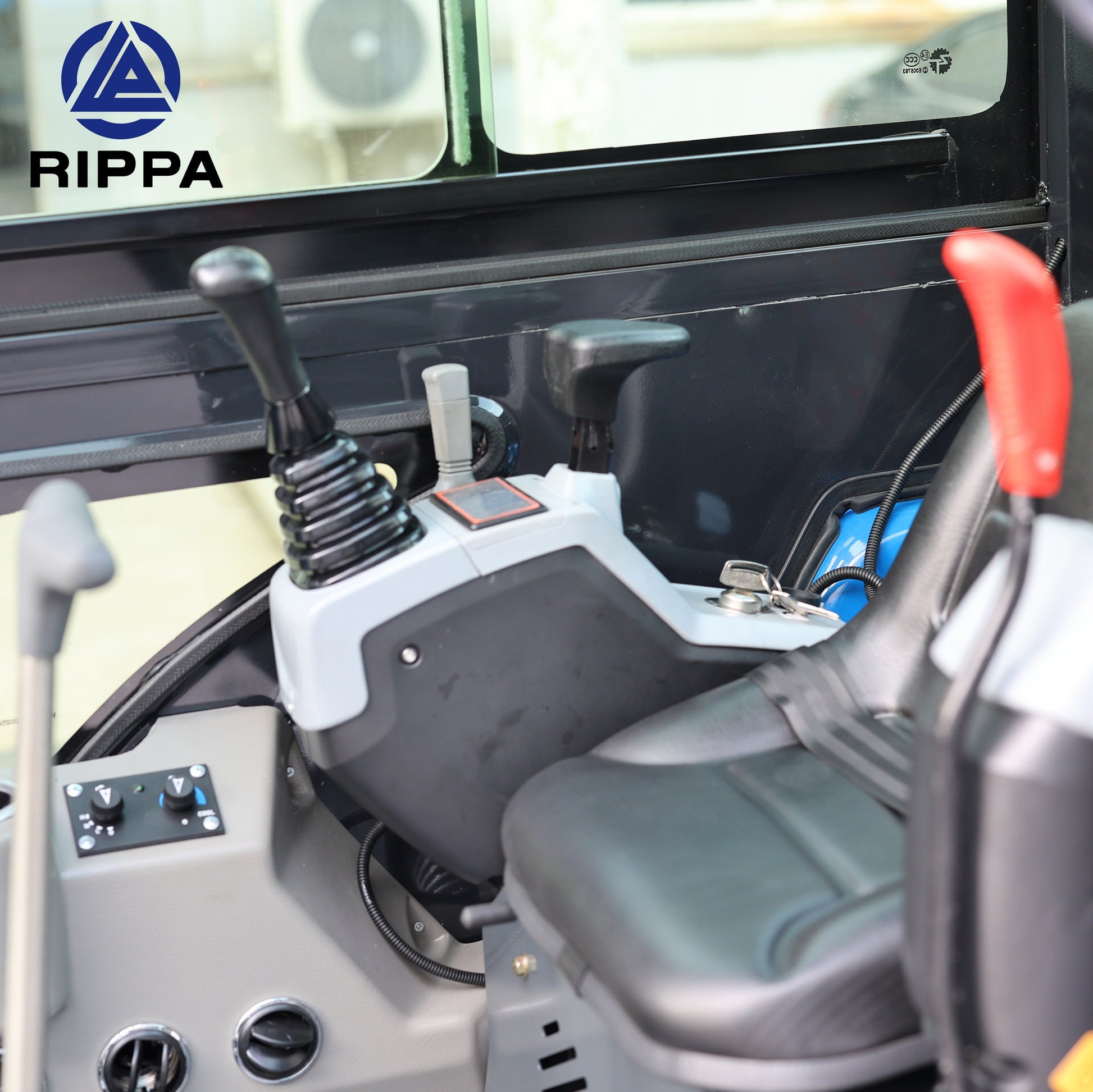

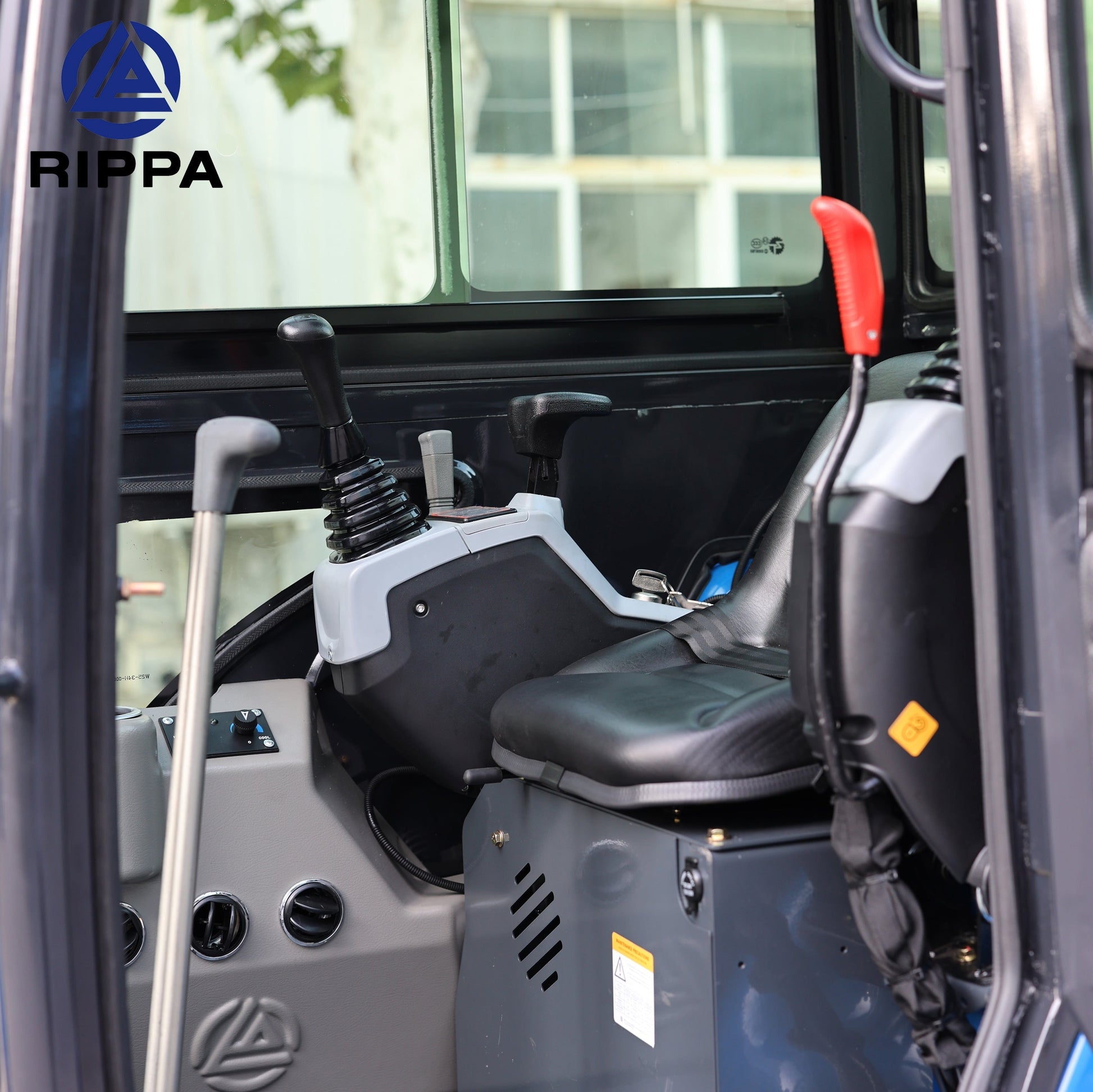

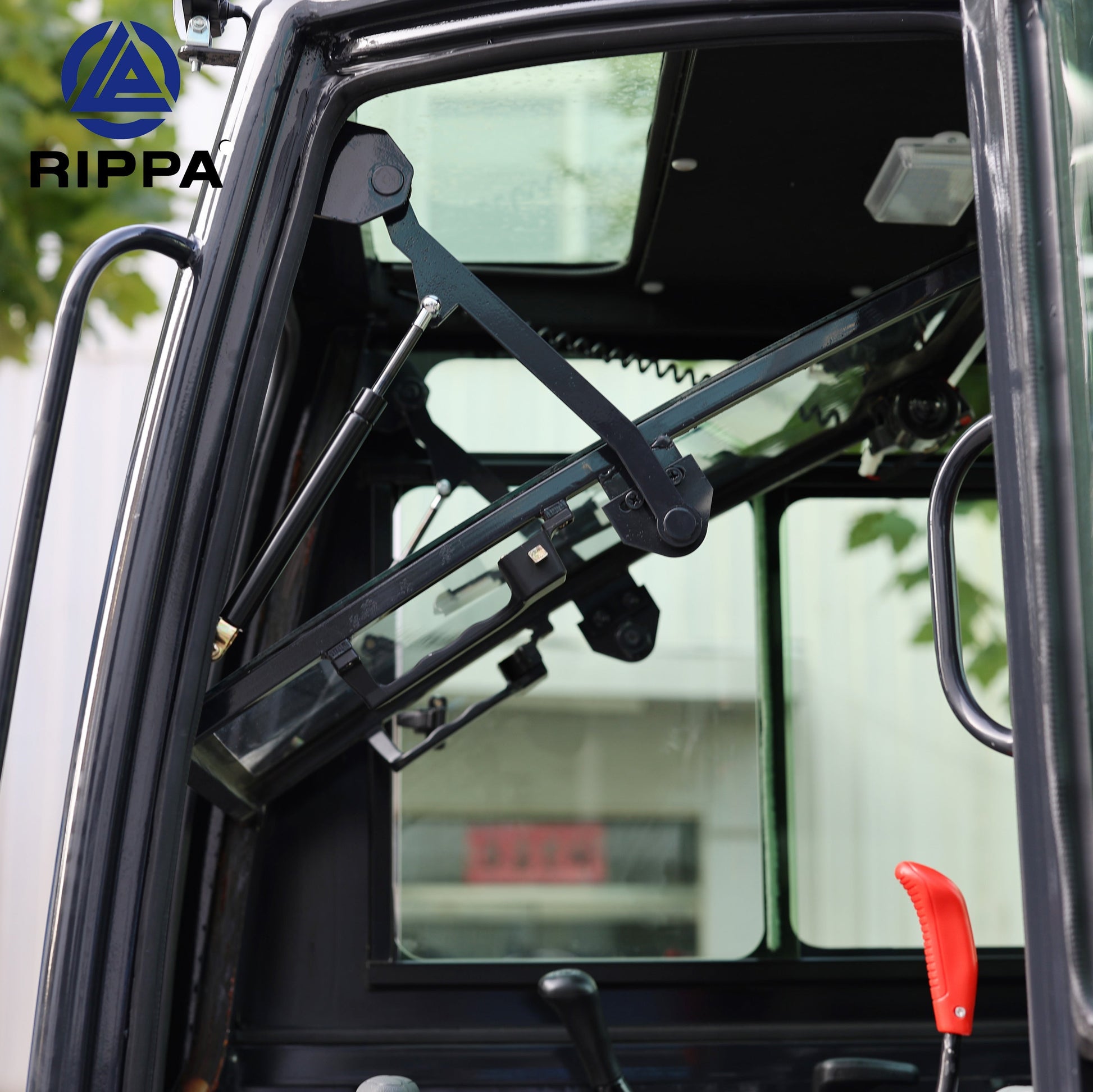

Cab: ■
Handrail: ■
Air Conditioning: ■
Dimensions
Transport Length: 2824 mm
Width: 1300 mm
Height: 2361 mm
Ground Clearance (Counterweight): 510 mm

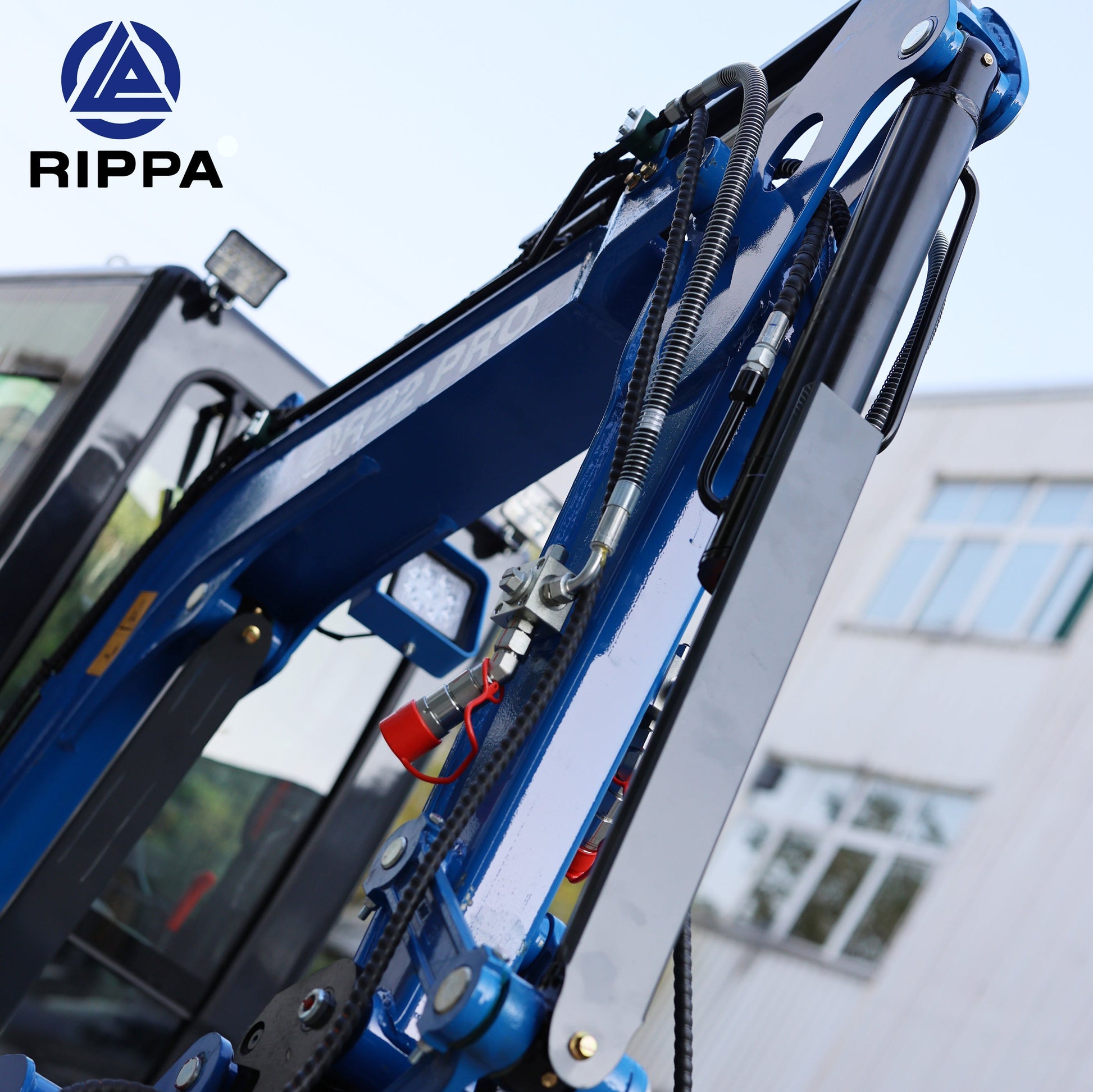

Boom Length: 1480 mm
Arm Length: 1250 mm
Dozer Blade Width: 1300 mm
Track Type: O-Steel / O-Rubber
Track Spec: 25047RS84
Rubber Block Count: 84
Fuel & Fluids
Fuel Tank Capacity: 28 L
Hydraulic Oil Tank: 24 L
Shipping Reference
Wooden Box: 3700 × 1700 × 2470 mm
After Cab Removal: 3700 × 1700 × 2470 mm
Compact Box Size: 1130 × 1030 × 1850 mm
Units per 40HQ (Assembled): 5
Units per 40HQ (Dismantled): –
Warranty
All Labadi Engineering excavators include:
1-Year Warranty on Engine
1-Year Warranty on Hydraulic Pump
Nationwide parts support and customer service available
