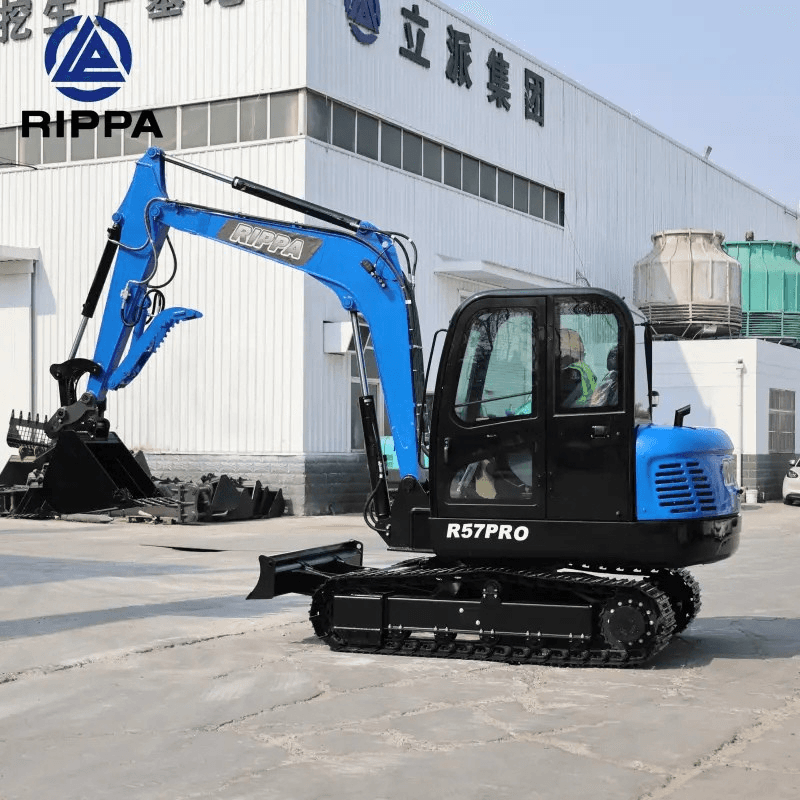

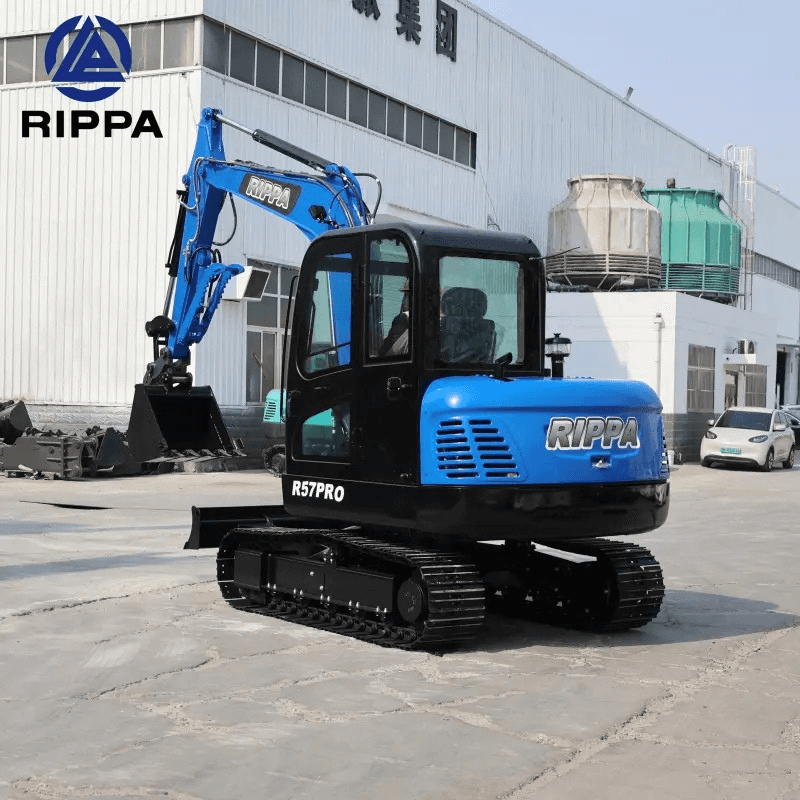

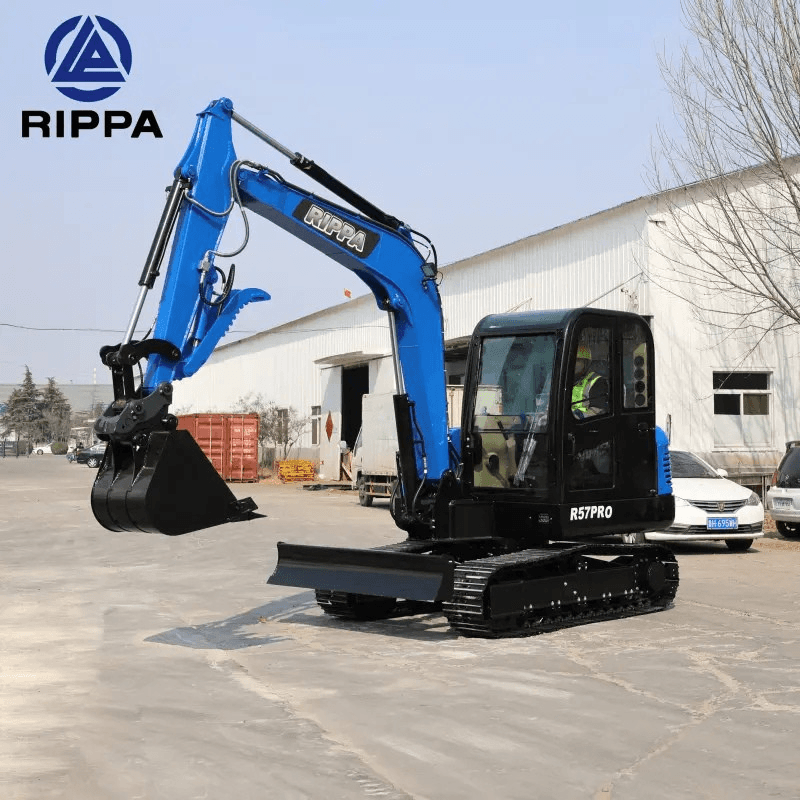

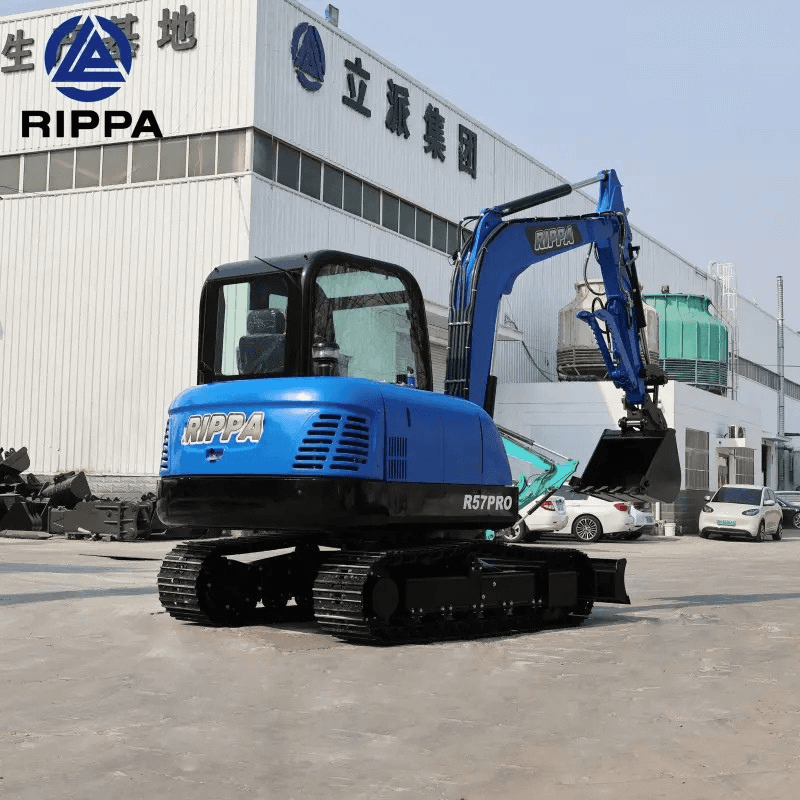

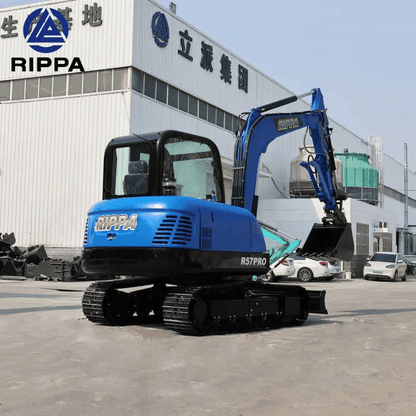

The RIPPA R57 PRO is a 5.7-ton mini excavator designed for high efficiency, smart operation, and outstanding durability. Ideal for municipal projects, road construction, and urban infrastructure, this model features a Kubota V2607 engine, proven hydraulic components, and a comfortable operator environment—delivering reliable performance with lower operating costs.
Key Specifications
| Item |
Specification |
| Operating Weight |
5700 kg (12,566 lb) |
| Bucket Capacity Range |
0.09–0.175 m³ (3.18–6.18 ft³) |
| Boom Length |
3000–1600 mm |
| Arm Length |
3890 mm (153.1 in) |
| Max Digging Depth |
5780 mm (227.6 in) |
| Max Dumping Height |
4030 mm (158.7 in) |
| Vertical Digging Depth |
3025 mm (119.1 in) |
| Track Length |
2540 mm (100.0 in) |
| Ground Clearance |
1880 mm (74.0 in) |
| Track Shoe Width |
400 mm (15.7 in) |
| Engine Model |
Kubota V2607 |
| Engine Power |
38 kW @ 2200 rpm |
| Control Valve |
Trout / Korea |
| Swing Motor |
Doosan (Korea) |
| Travel Motor |
Doosan (Korea) |

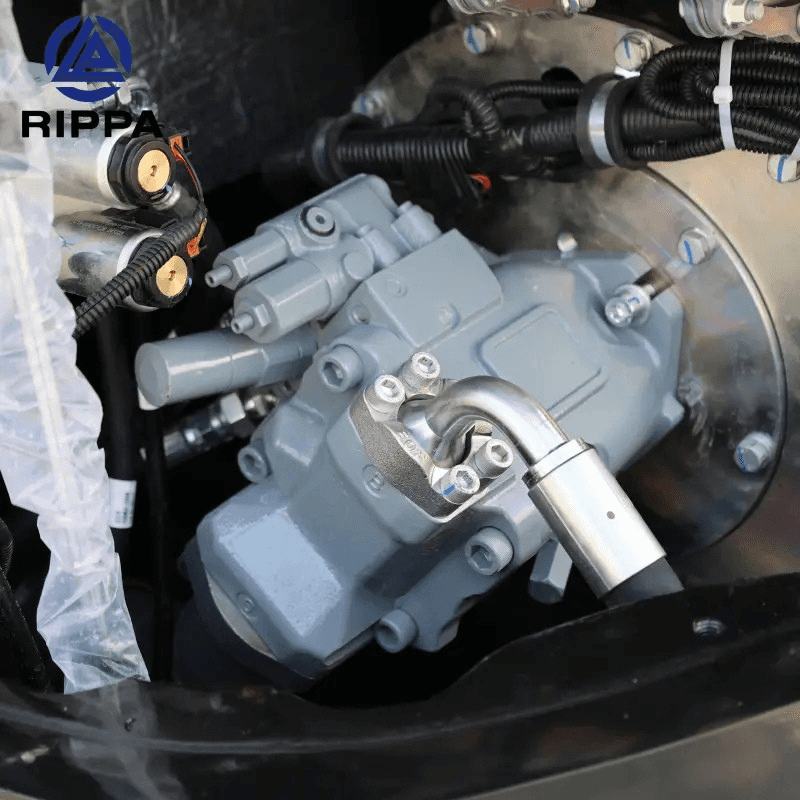

| Main Pump |
Doosan (Korea) |
Product Highlights
Fuel Efficiency & Eco-Friendly
The R57 PRO features an intelligent hydraulic control system that improves fuel efficiency by 10%. Engine power is dynamically matched to working conditions, reducing fuel waste. It meets global emission standards and supports ultra-low sulfur fuel (<10ppm).
Durability & Reinforced Structure

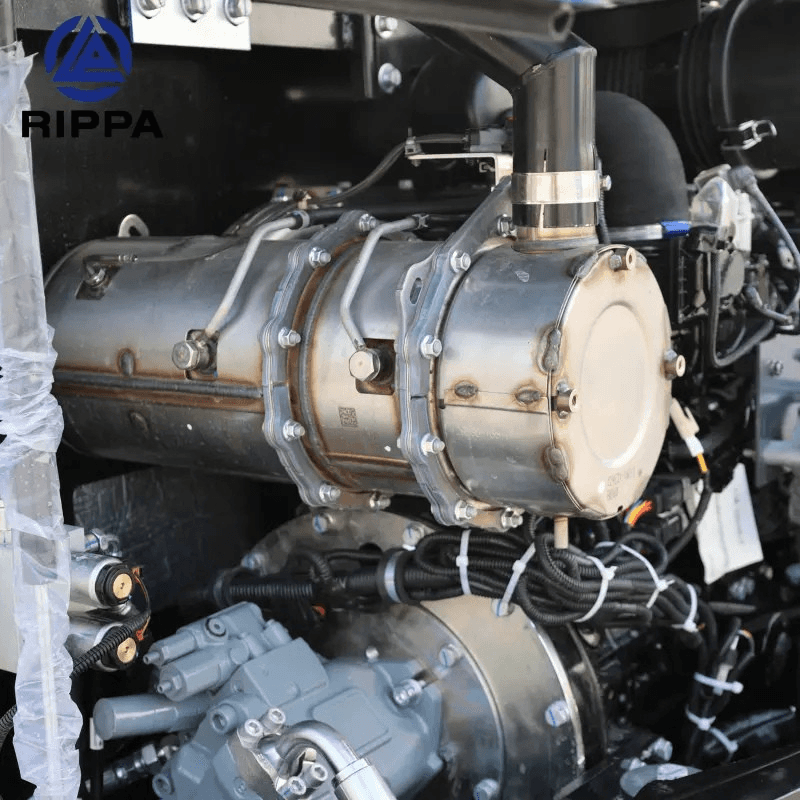

The boom and arm adopt an integrated casting design with fewer welds. High-strength wear-resistant steel plates are used in key stress areas, and all core components—including the engine and hydraulic parts—are imported to ensure long-term reliability.
Smart Operation & Operator Comfort

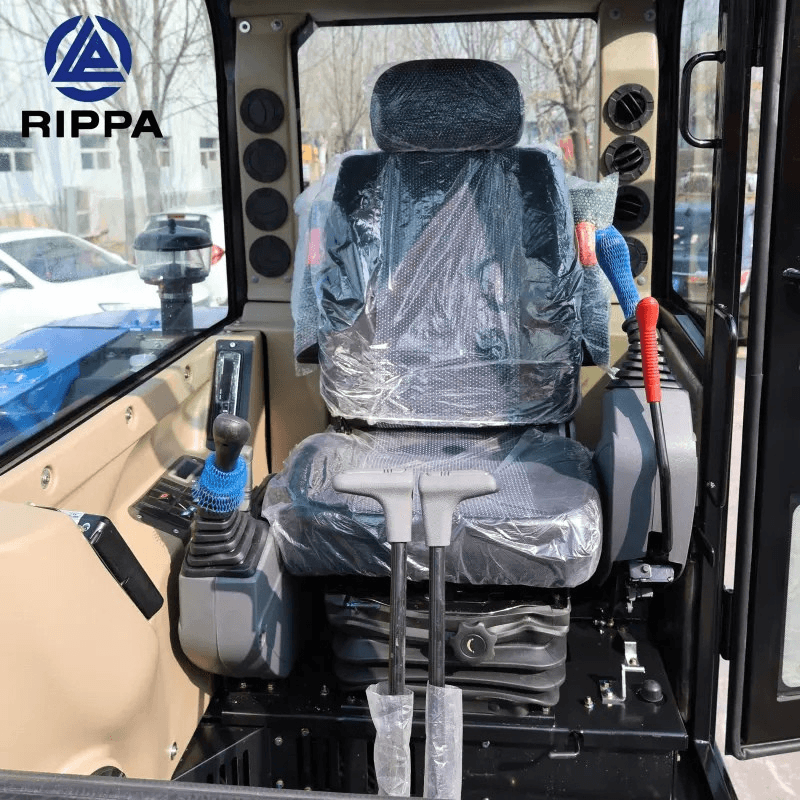

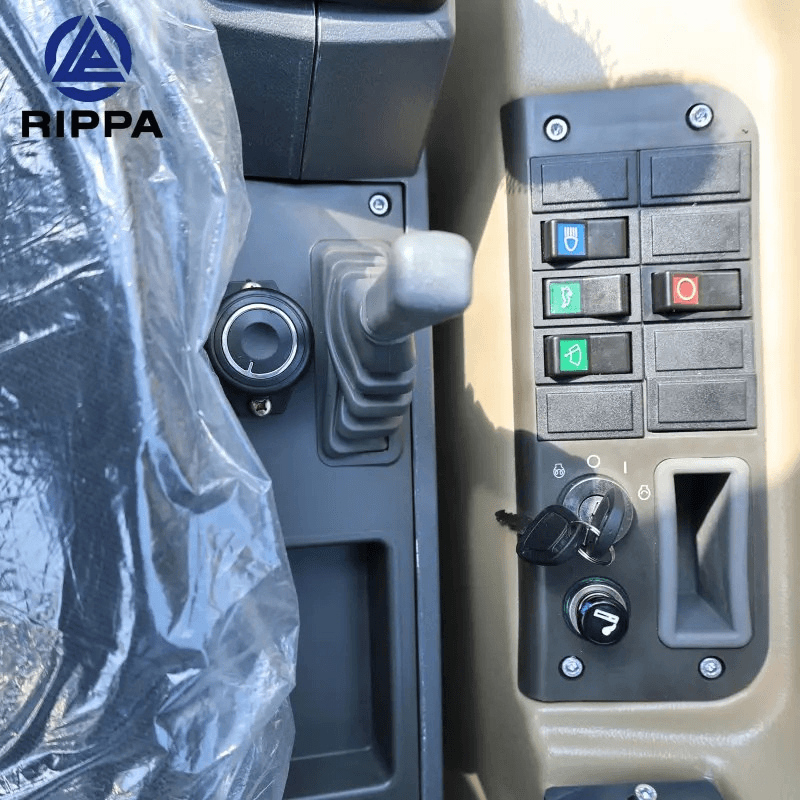

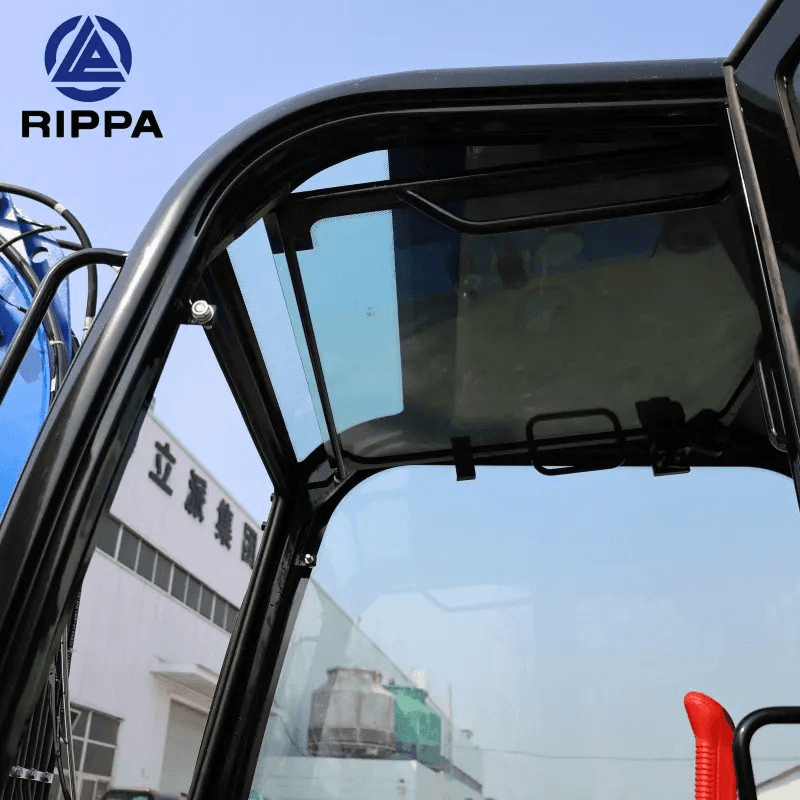

Equipped with a multi-function LCD display, the R57 PRO provides real-time monitoring of machine status. The ergonomically designed cab includes an air-suspension seat and built-in air conditioning system, reducing vibration, noise, and operator fatigue.
Easy Maintenance & Comprehensive Support
A centralized layout behind the cab simplifies routine maintenance. Intelligent diagnostics are available for hydraulic oil quality, urea concentration (32.5% ±0.7%), and DPF cleaning (free during warranty-covered failure), keeping the machine in peak condition.
Safety & Versatile Features

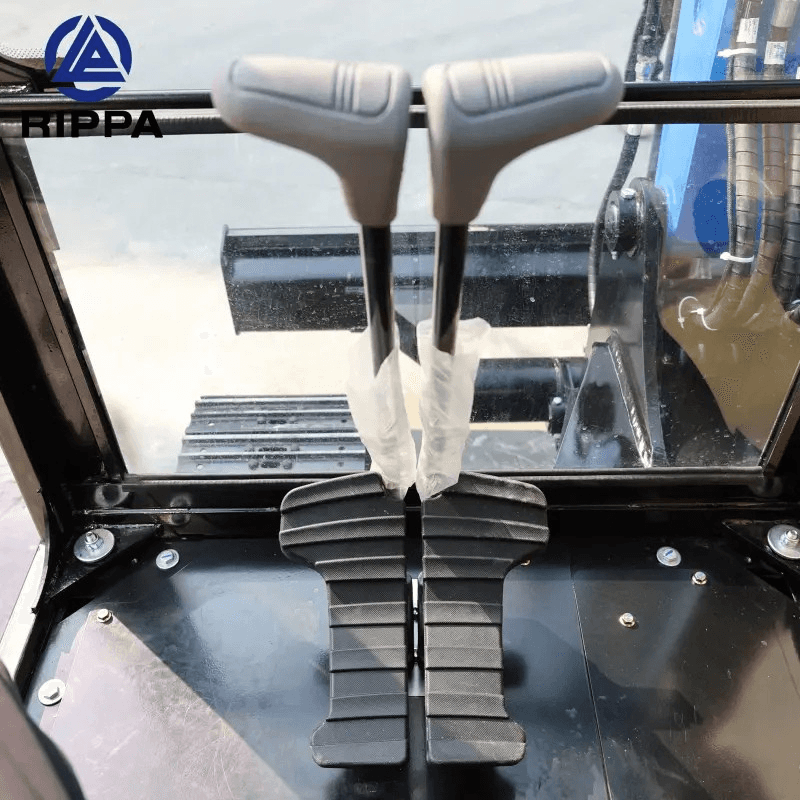

Custom multi-way valves improve combined movement fluidity. A preheating system enhances cold-start performance. Safety locking on joysticks and a foldable windshield ensure safe and adaptable operation in various climates.
